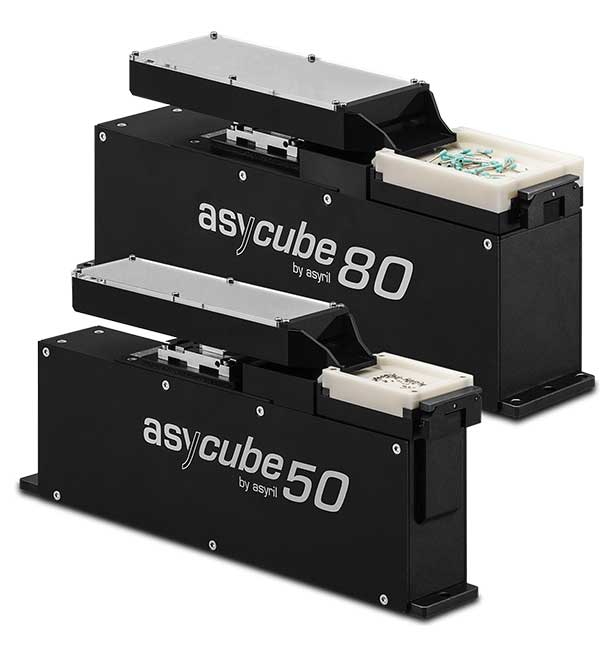

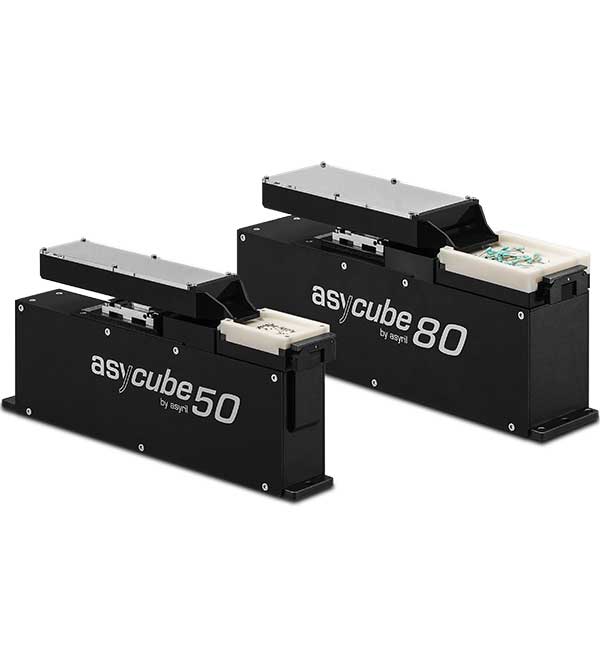

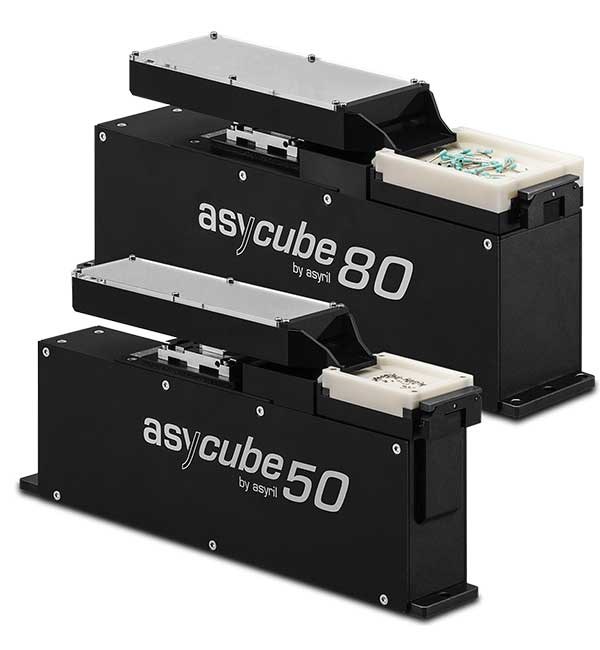

Asycube 50 and 80 柔性零件进料器

zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom

Asycube是一款三轴振动机器人零件进料器。
Asyril的柔性进料器可实现高性能的零件进给，预定向以及批量零部件的理想表面分布。
五种不同的Asycube型号，可用于进给介于<1至150mm间任何形状、材料和尺寸的零件。
Asycubes适用于批量进给零件但必须逐个向机器人供送的应用。典型应用包括：拾取和放置、机器看护、组装和码垛。

查看完整描述
获取信息
网站
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。 转到我的项目
特点
  • 兼容所有几何形状的零件 : 在Asycube上可以进给99％的零件 - 包括几何形状复杂的零件和精密材料
  • 生产转换时间短，可实现灵活多变、面向未来的生产系统
  • 由于采用3轴振动技术，零件处理非常平缓：零件可以在所有方向上移动，包括每个零件的翻转幅度选择。由于零件无需再循环，因此磨损很小。 可以进行平台清洗。
  • 采用先进的音圈技术，可靠性和耐用性高；无需压缩空气
  • 借助集成式、可调节的背光/（可选）SmartSight视觉零件检测系统，可进行精确的零件检测
  • 通过智能结构平台（凹槽，孔，嵌套）可实现系统零件定向

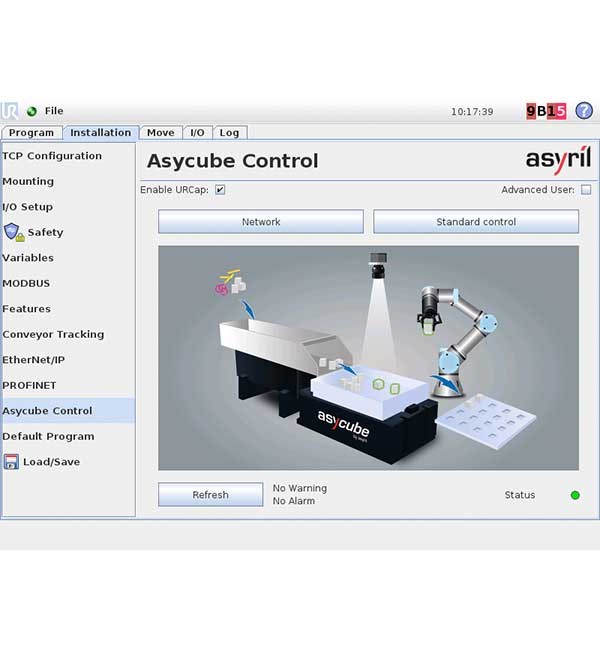

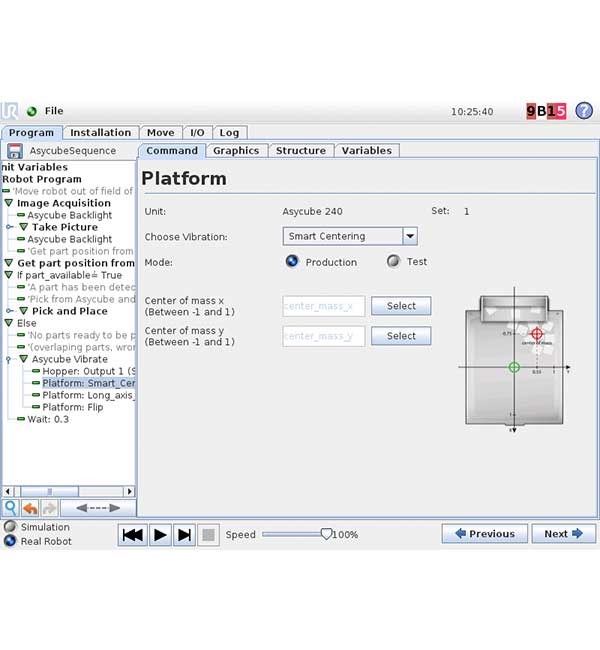

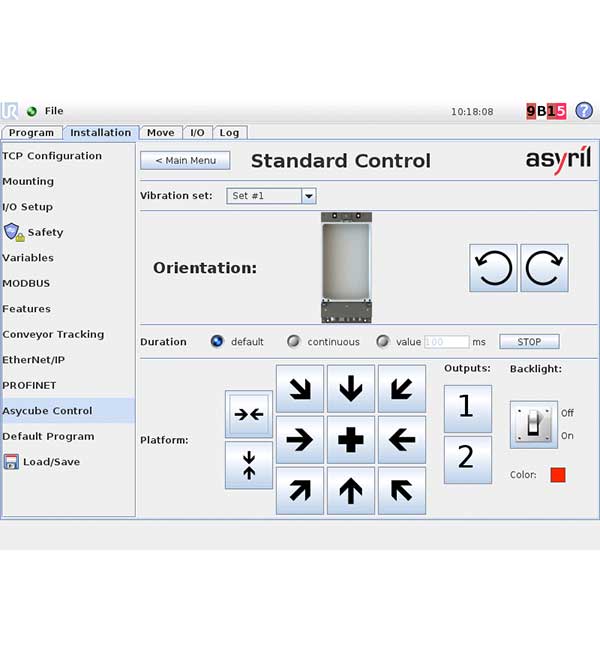

  • 通过Asycube提供的URCaps插件可轻松完成配置和系统集成
工作方式

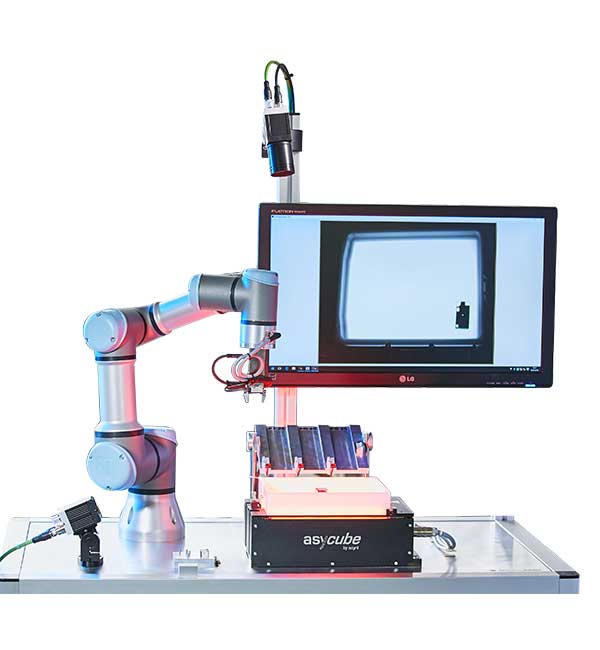

在自动化机器中，传统的零件进给方法是使用振动碗。然而，它们很难满足针对灵活性的新要求，并且难以集成到协作机器人中。Asycube通过智能振动将零件分离并定位在表面上。然后使用视觉系统来定位部件并将坐标传递给机器人，以便拾取。

子应用
组装
材料处理
机器看护
机器人兼容性
UR3
UR3e
UR5
UR5e
UR10
UR10e
UR16e
Available globally

软件版本要求
Asycube固件4.0.2或更高版本

配套使用要求
24伏电源（详见数据表）
配置 : 带Windows 7（或8）的64位计算机；Asyril HMI v2.6.2或更高版本

认证与标准
机器指令 2006/42/EC

尺寸

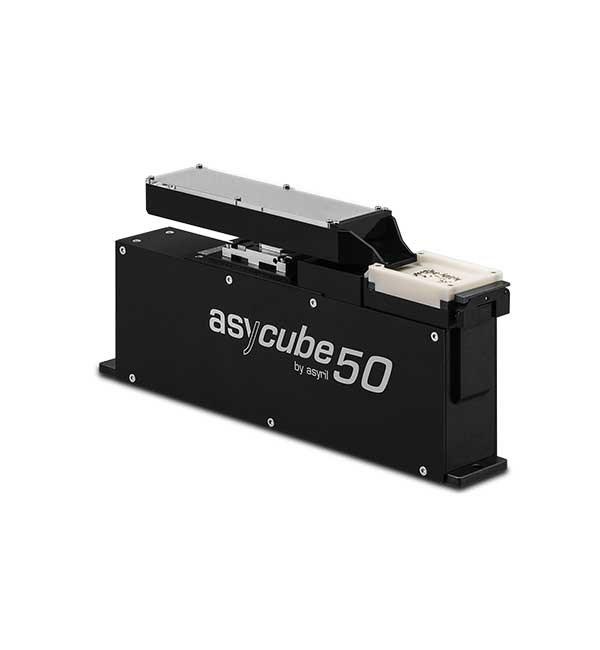

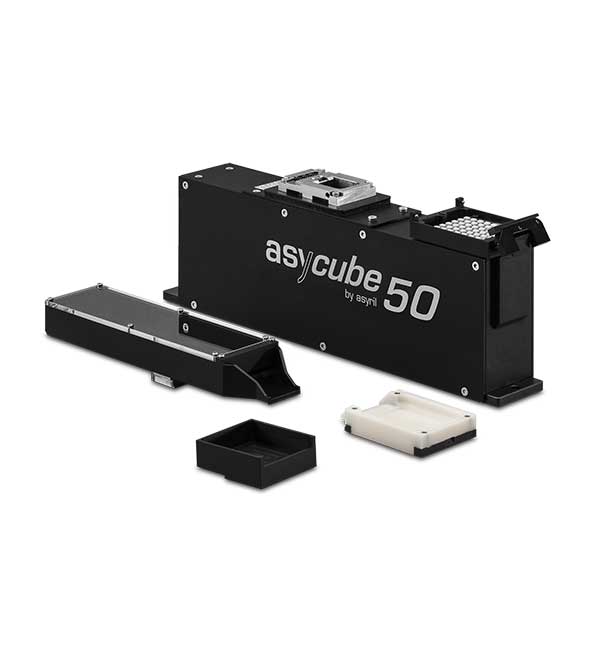

  • Asycube 50
    适用于0.1至5毫米零件的柔性进料器
    进料器尺寸（长x宽x高）：293x46x138毫米

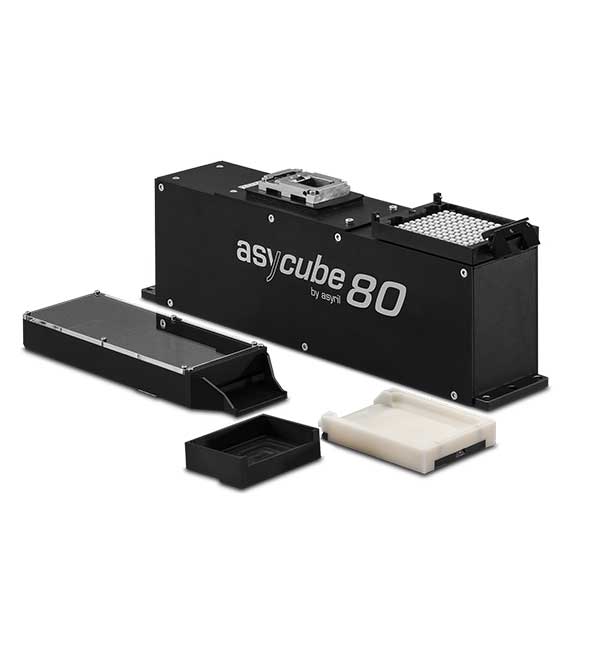

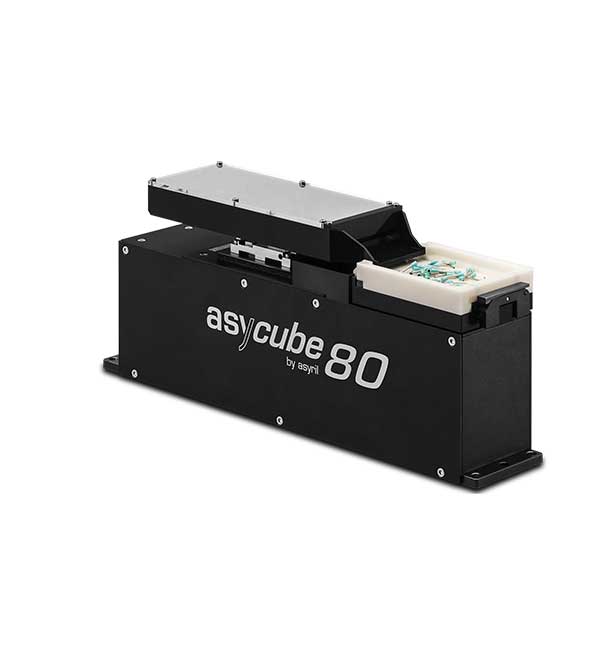

  • Asycube 80
    适用于3至10毫米零件的柔性进料器
    进料器尺寸（长x宽x高）：320x61x138毫米

套件内容
根据客户背光颜色需求定制的Asycube柔性进料平台。
可选定制振动板，校准平台，电缆和其他配件。
