ATI 浮动往复锉工具

zoom
zoom
zoom
zoom

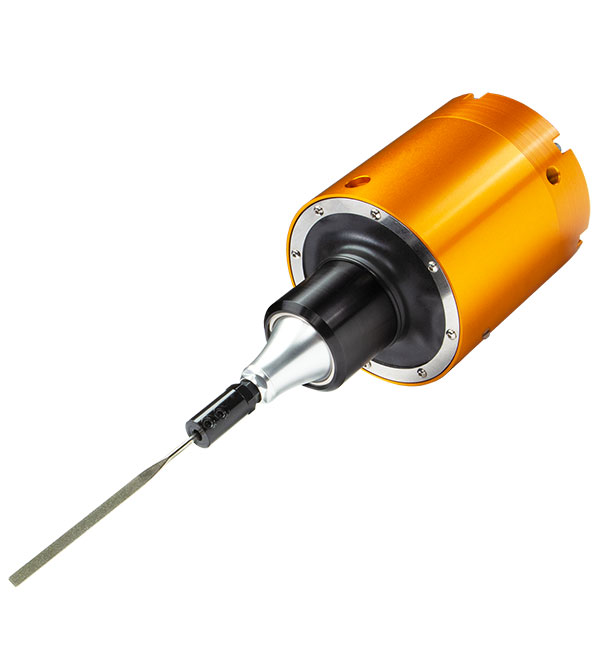

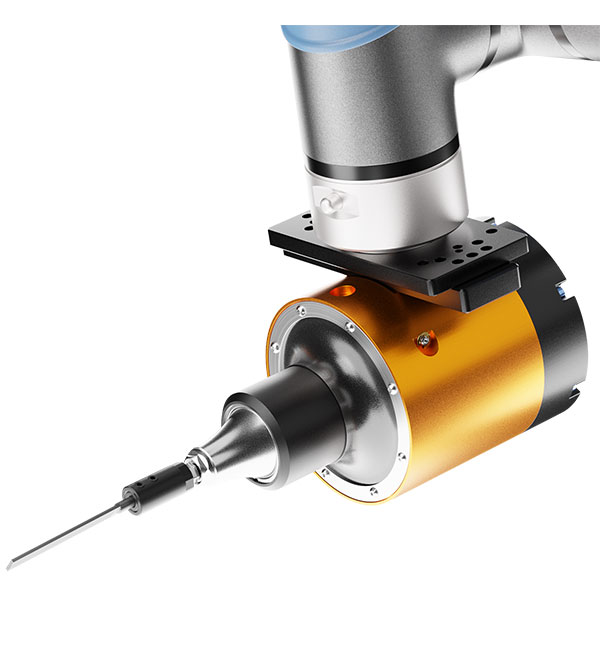

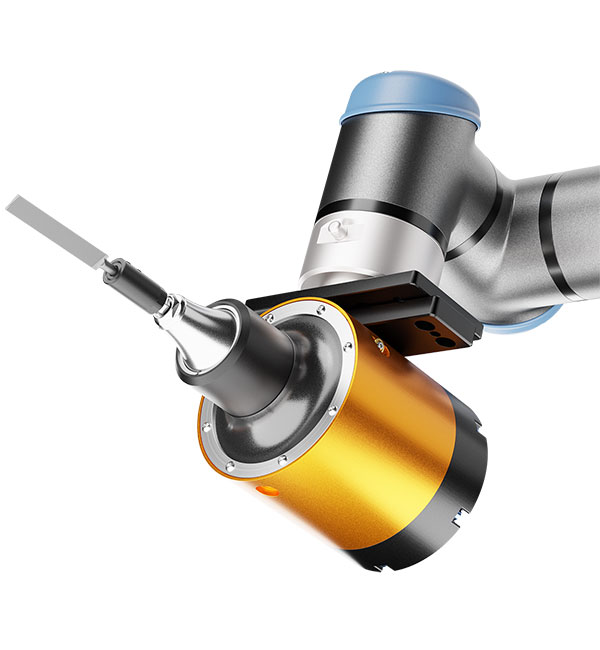

专利设计的CRT-12-5浮动往复锉工具可实现多种的机器人材料去除操作。CRT-12-5具有强大的往复驱动，能产生独特的锉削运动，适用于铸造金属工件的边缘去毛刺和合模线去飞边等精细任务。

CRT-12-5具有内置的浮动性，使编程更加简单，并确保结果一致。切削力可实时调节，用户可对加工过程进行微调，以达到理想的加工效果，并可根据零件的多样性进行调整。

该浮动锉刀工具兼容目前业界广泛使用的各种锉刀，并且可以以多种方式进行部署。这个操作方便的机器人专用浮动锉刀工具是替代手动锉削工作的极佳方案。

查看完整描述
索取报价
获取信息
网站
下载文件

I’m looking forward to learning how to solve my business challenges with the help of UR! By checking the boxes below, I accept that Universal Robots deliver content and process my personal data for these purposes (check):

*This box is mandatory if you request content from Universal Robots, as we sell through a distributor network.

As Universal Robots is a global company, I understand that my data may be processed in countries where the legal regime for protection of personal data might not be as sufficient as within the EU.

I can withdraw my consent anytime by contacting dataprotection@universal-robots.com . My withdrawal will not affect the right to process my data up to the time of withdrawal. Personal data is processed in accordance with Universal Robots’ Privacy Policy.

加载中...
特点

专为精细材料去除操作而设计，例如表面抛光和边缘去毛刺。

  • 内置的可调浮动性，简化机器人编程。
  • 按需可调的切削力，可以让多种锉刀或磨具用于一把工具。
  • 兼容行业标准的各种锉削材料。
工作方式

当马达开启时，使用可调节的气源来控制接触力，将磨料介质推到工件上。这种恒定的打磨力可以使刀具沿径向变化。该力控制系统可以在路径方向上提供非常高的刚度，同时允许用户在浮动方向上进行合适力的设定。

该工具和匹配刀具的往复式设计使锉削运动成为深槽和紧角去除材料的理想选择。柔性的往复工具允许对零件位置或机器人路径的任何变化做出补偿响应，并可减少机器人编程时间达75%。

子应用
抛光
机器人兼容性
UR5
UR5e
UR10
UR10e
UR16e
销售区域
  • Argentina
  • Australia
  • Austria
  • Bangladesh
  • Belgium
  • Brazil
  • Bulgarian
  • Canada
  • Chile
  • Colombia
  • Croatia
  • Czech Republic
  • Denmark
  • Estonia
  • Finland
  • France
  • Georgia
  • Germany
  • Greece
  • Hong Kong
  • Hungary
  • Iceland
  • India
  • Indonesia
  • Ireland
  • Israel
  • Italy
  • Japan
  • Latvia
  • Lithuania
  • Luxembourg
  • Macau
  • Malaysia
  • Malta
  • Mexico
  • Netherlands
  • New Zealand
  • Norway
  • Oman
  • Peru
  • Philippines
  • Poland
  • Portugal
  • Qatar
  • Romania
  • Saudi Arabia
  • Singapore
  • Slovakia
  • Slovenia
  • South Korea
  • Spain
  • Sri Lanka
  • Sweden
  • Switzerland
  • Thailand
  • Turkey
  • United Arab Emirates
  • United Kingdom
  • USA
  • Vietnam
  • 台湾
  • 中国大陆

尺寸工具重量：3.1kg
往复行程：5 mm
浮动行程范围：8.1 mm
直径：109 mm
长度：250 mm

认证与标准无

套件内容浮动的往复锉工具、转接板套件、气体连接套件、装配工具和锉刀

许可类型一次性购买
