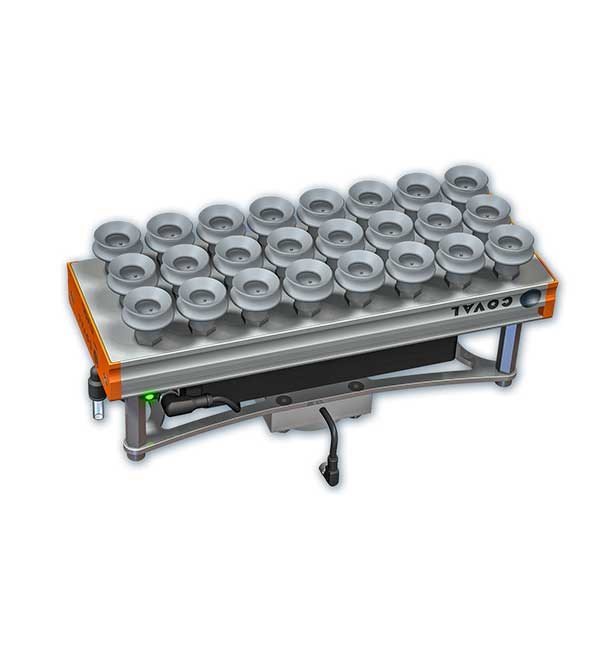

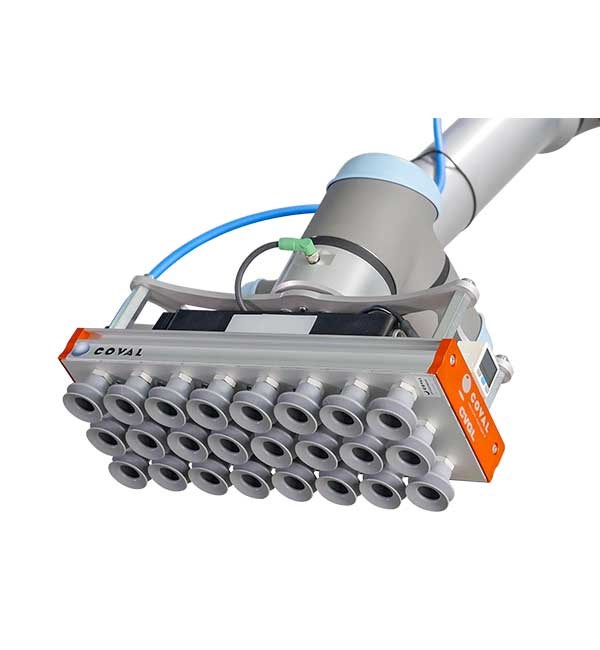

吸盘真空夹具，CVGL335XA50C1

zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom

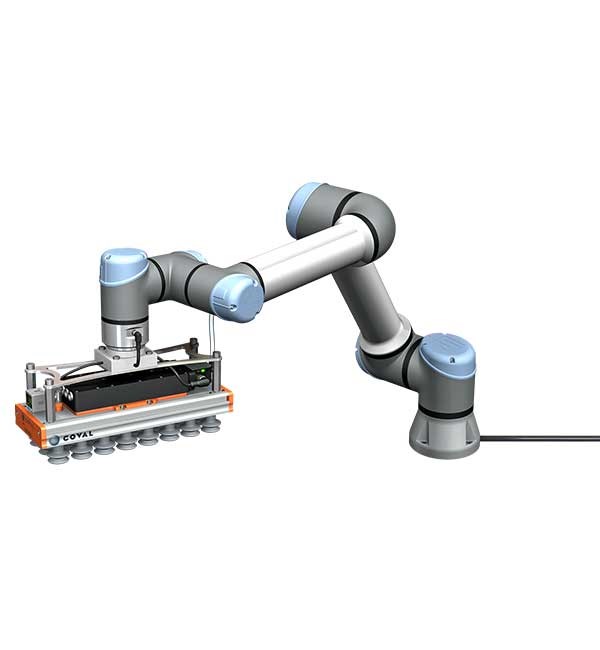

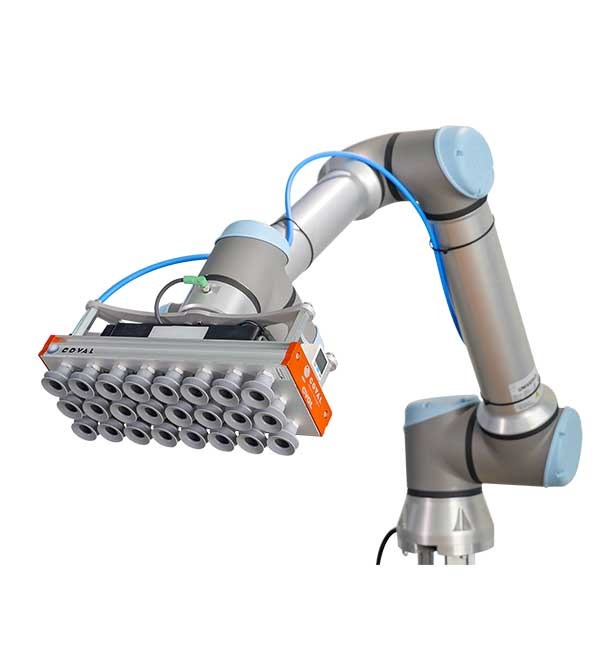

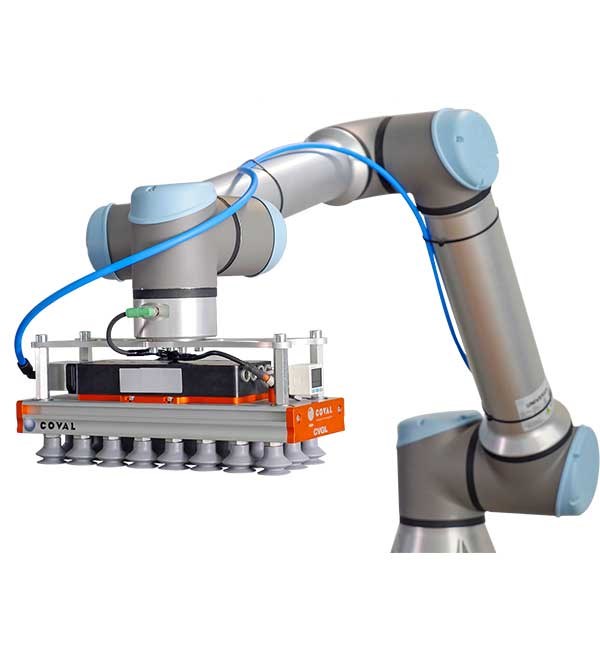

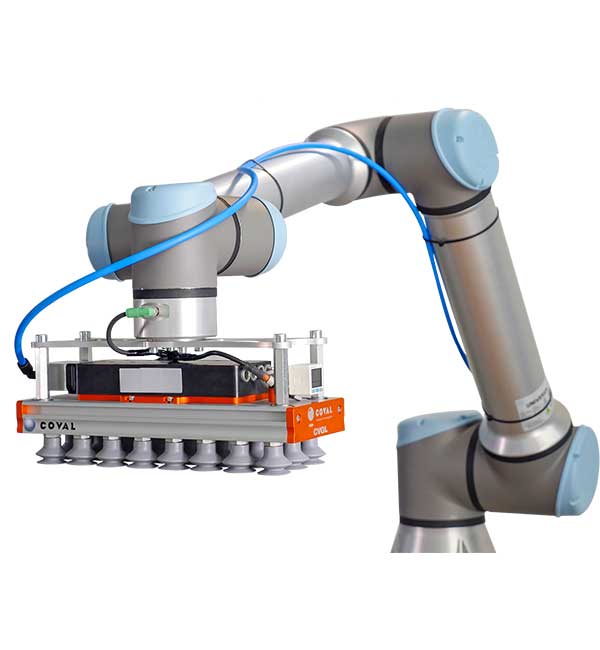

Coval CVGL335XA50C1真空夹具可轻松集成至协作式机器人中。
包装完整紧凑，集成处理产品所需的所有功能，适合各种尺寸、形状和重量。

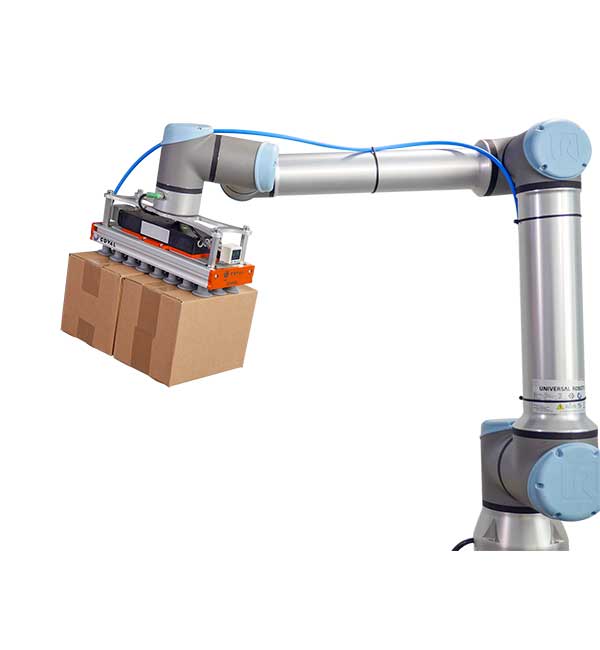

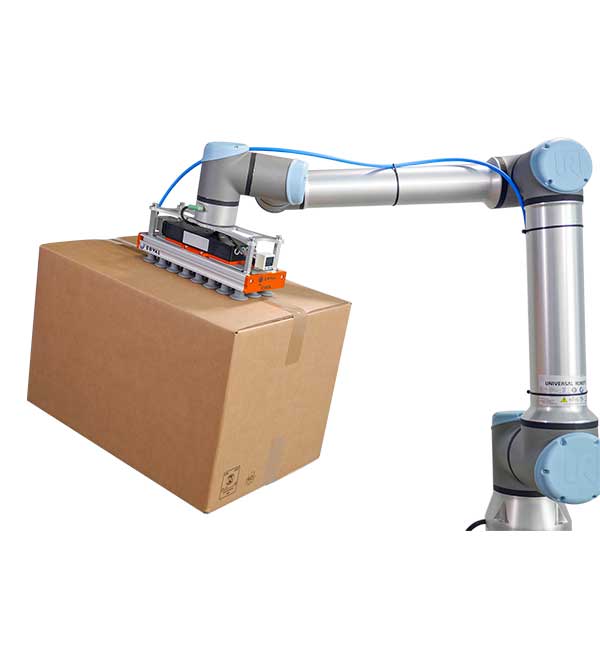

CVGL335XA50C1抓取接口配有吸盘和强大的气动真空发生器，可垂直安全抓取各种载荷的零件。

查看完整描述
获取信息
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。
网站
特点
  • 适用于协作式机器人应用
  • 吸盘抓取接口
  • 能够处理各种尺寸、形状和重量的产品
  • 简单或多次抓取
  • 支持垂直或水平抓取
  • 安装简便快捷

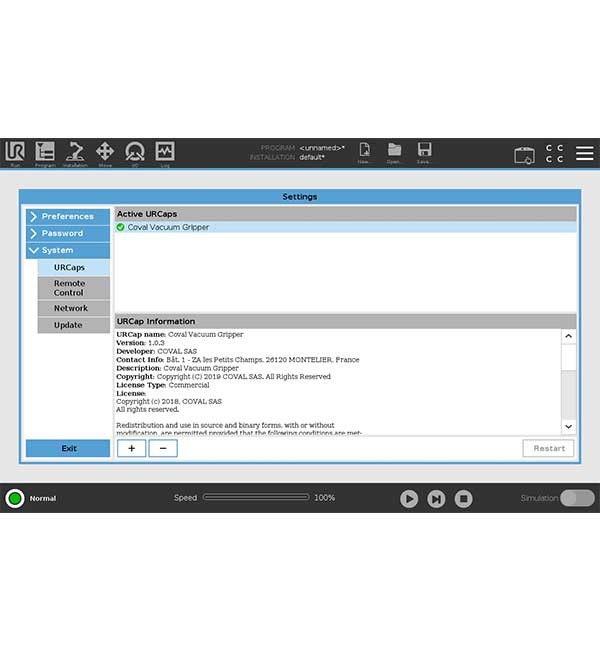

  • 专为CVGL真空夹具设计的URCap插件可简化集成和编程。
工作方式

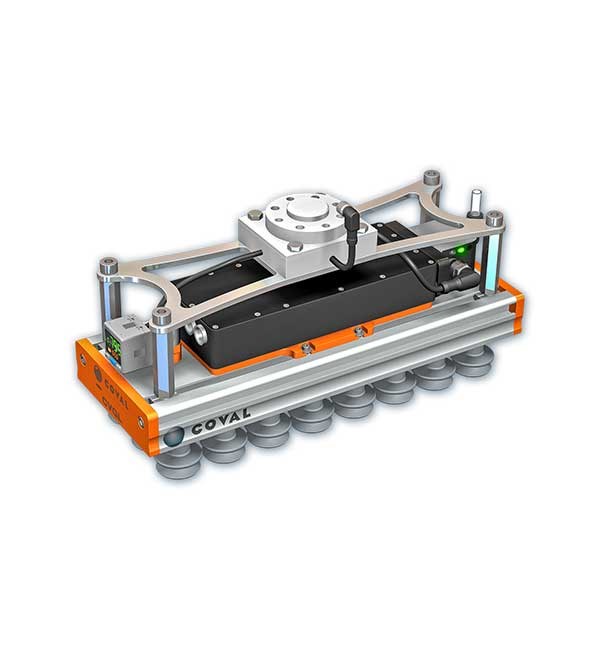

CVGL吸盘真空夹具采用轻量化设计，外观小巧，包括气动真空发生器（文丘里原理）以及控制和检查真空所需的所有功能。吸盘抓取接口适合不同载荷。要安装夹具，请使用随附的螺钉将安装接口组装在机器人上，然后将夹具固定在接口下方。将M8电缆连接到机器人手腕，然后将夹具连接到压缩空气网络。然后通过USB密钥安装URCap插件，以便于CVGL编程。现在，您可以随时使用CVGL真空吸盘。

产品分类
吸盘
机器人兼容性
UR10
UR10e
UR16e
Available globally

配套使用要求
压缩空气

认证与标准
2014/30/EU 电磁兼容指令(EMC)
EN ISO 9409-1 工业机器人 - 机械接口

尺寸
CVGL335XA50C1：335X120 mm，重量 3.12 kg

套件内容
- 真空夹具CVGL335XA50C1
- 带螺丝的安装接口ISO 9409-1-50-4-M6
- 用户手册
- （在网站上下载URCap插件和用户手册）

许可类型
一次性购买
