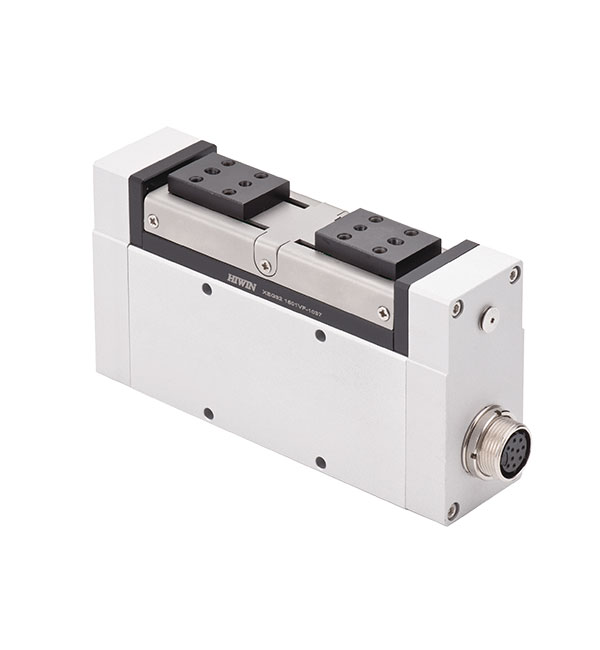

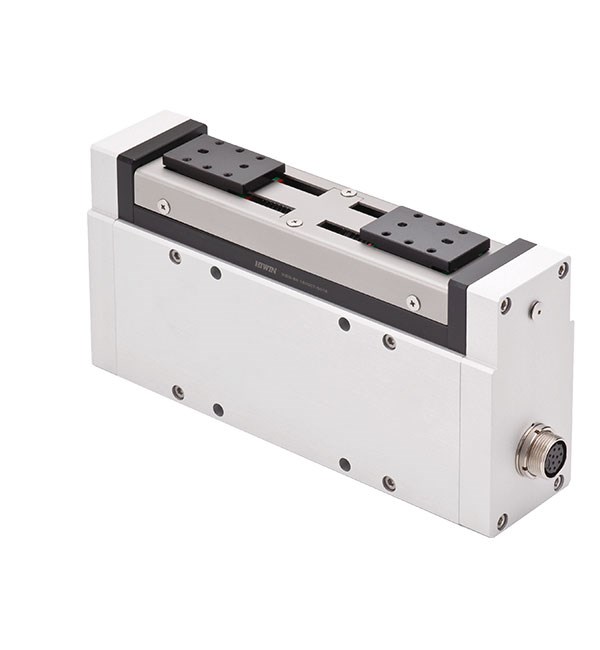

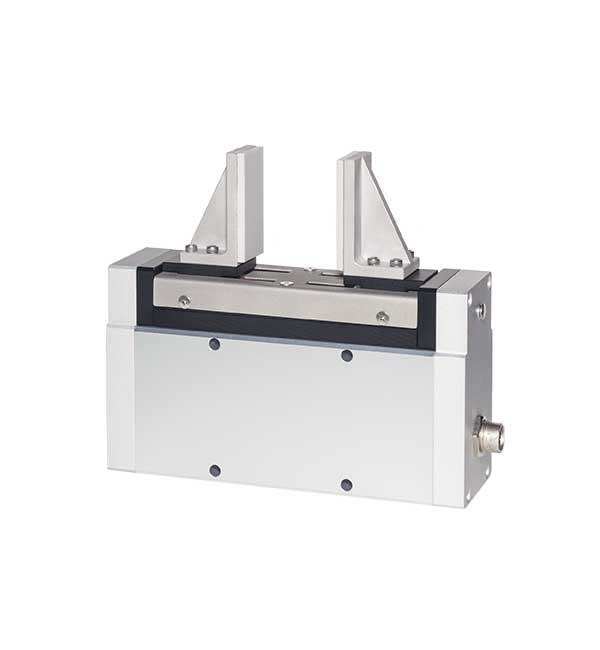

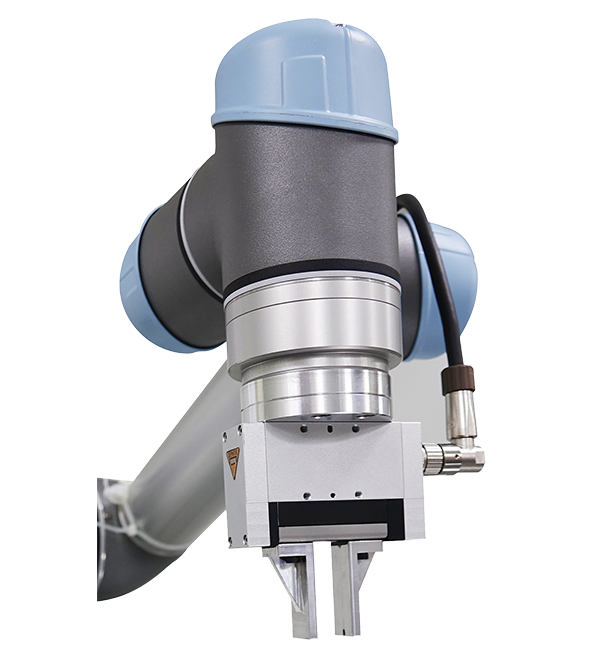

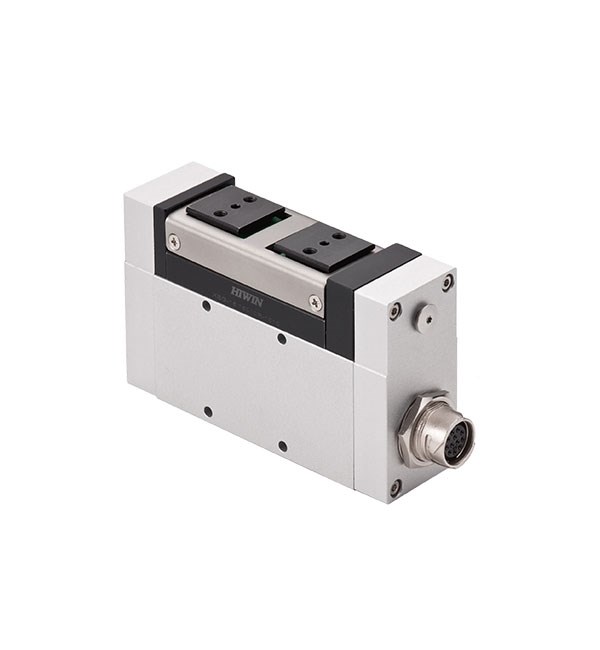

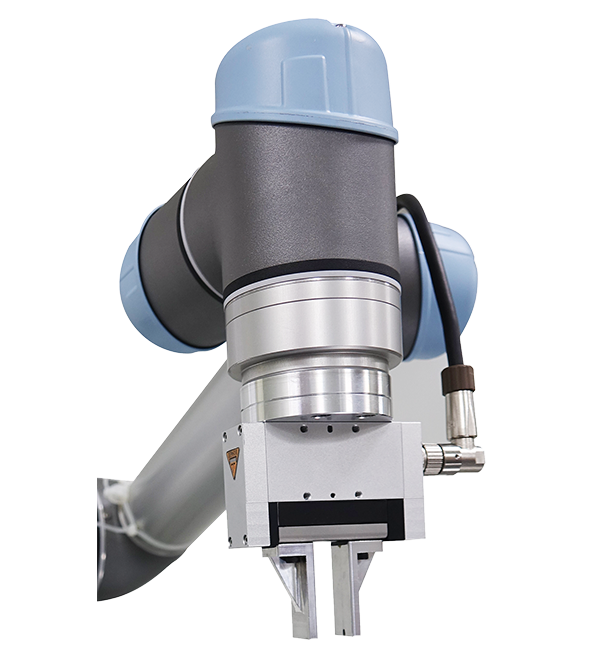

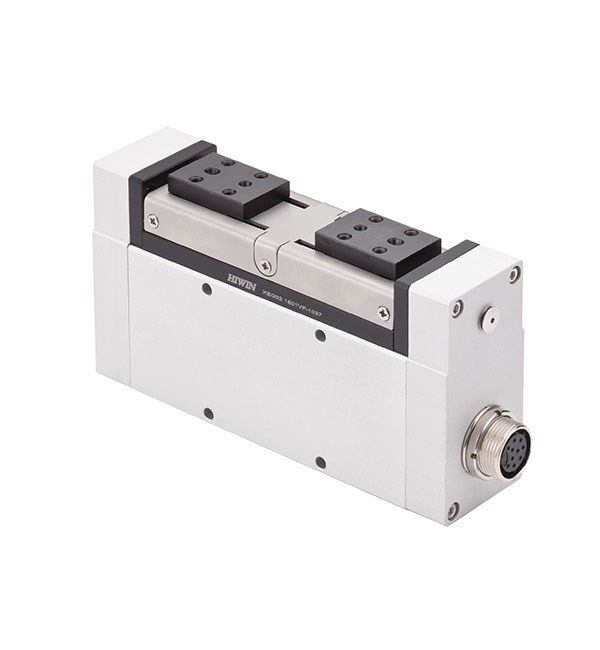

HIWIN X系列

zoom
zoom
zoom
zoom
zoom
zoom
zoom

智能的用户友好型产品，所有客户的理想之选

  • 设置简单，几分钟内即可完成
  • 两侧行程为16 毫米（我们还提供32毫米和64毫米行程的型号）
  • 重复精度±0.01 毫米
  • 自主研发的核心部件
  • 参数设置（夹持行程、速度和力度）可变
  • 自动调整原始复位功能
  • 适用于弹性或易碎的工件，如电气元件、橡胶材料、玻璃材料或外壳结构
  • UR+认证
  • CE、RoHS认证
  • 500万次循环使用或12个月质保
查看完整描述
获取信息
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。
网站
特点
  • 型号：XEG-16-C15L1-W1-UR
  • 行程[两侧]：16 mm（我们还提供32mm和64mm行程的型号）
  • 夹持力：25-50 N
  • 移动速度：1-60 mm/s
  • 夹持速度：1-10 mm/s
  • 重复精度：±0.01 mm
  • 夹爪重量：0.4 kg
  • 电源：DC 24V±10%
  • 总电流：0.5 A

  点击 此处 查看更多S系列相关的信息。

工作方式

...

子应用
材料处理
机器看护

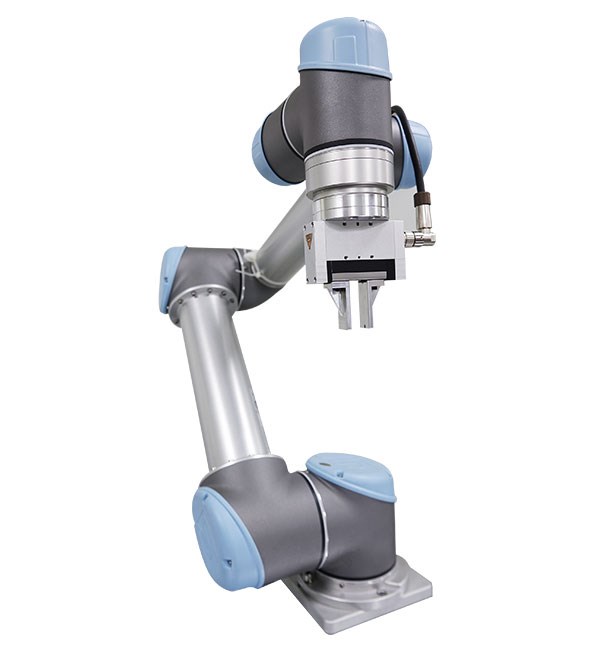

机器人兼容性
UR3
UR5
UR10
UR3e
UR5e
UR10e
UR16e
Available globally

所需软件版本
高于3.3的Polyscope版本

尺寸
HIWIN XEG-16-UR (操纵器): L:83.5 mm x H:51.5 mm x W:25 mm
HIWIN XEG-C1 (控制器): L:136 mm x H:33 mm x W:56 mm

HIWIN XEG-32-UR (操纵器): L:125 mm x H:66.5 mm x W:33 mm
HIWIN XEG-C1 (控制器): L:136 mm x H:33 mm x W:56 mm

HIWIN XEG-64-UR (操纵器): L:189 mm x H:93 mm x W:48 mm
HIWIN XEG-C1 (控制器): L:136 mm x H:33 mm x W:56 mm

套件内容

  • 电动夹爪HIWIN XEG-16-UR
  • 电动夹爪控制器XEG-C1
  • UR机器人适配器套件（ISO-9409-1-50-4-M6）
  • 电缆（执行器电缆5M-L，I/O电缆1.5M，USB电缆1.5M）
  • 搭配套件（电源插头、插脚、润滑喷嘴/管道）
  • 软件（URCap（下载））

许可类型
一次性购买
免费URCap软件
免费更新URCap
点击 此处 免费下载URCap
