拓德复合机器人

This product is not available in your region (USA)
zoom
解决方案
zoom
解决方案
zoom
解决方案
zoom
解决方案
zoom
解决方案
zoom
解决方案

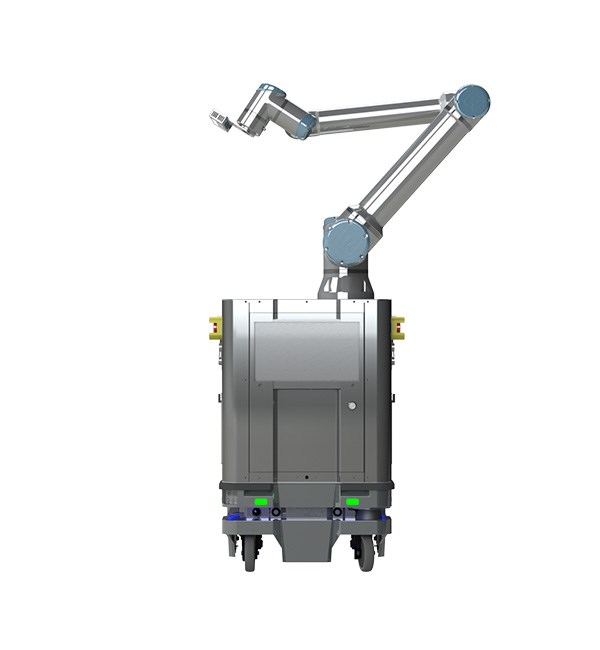

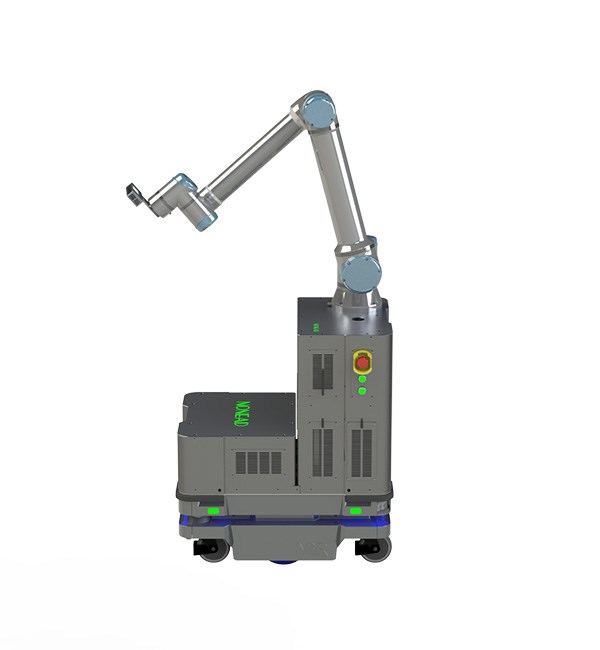

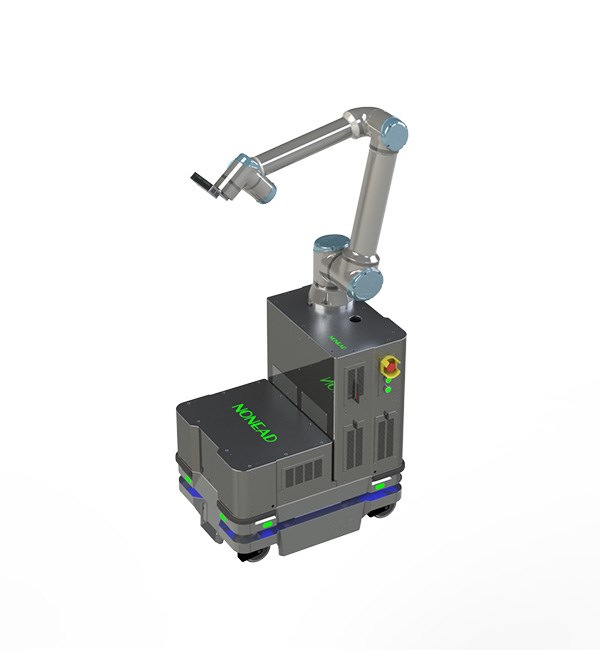

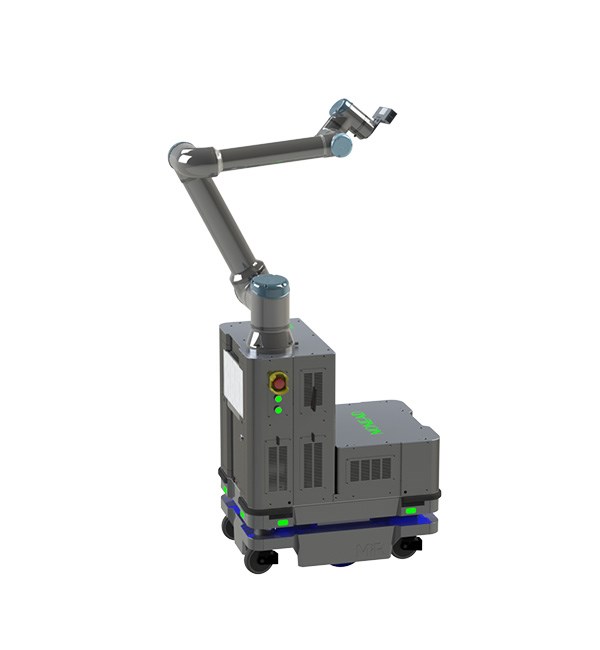

nCobot 是一款室内工业协同自主移动机器人，可以实现工厂物料输送的自动化，提高内部物流的速度，解放员工的运输工作，提高员工和机器人的安全性，提高生产率。
nCobot 具有快速部署、编程简单、安全性和可靠性等特点，无需改变工作场所的布局。
nCobot 使您能够不断适应不断变化的市场需求、新产品和新生产流程。 您可以轻松地替换模块、更改任务和添加新功能，而不需要外部集成服务。

查看完整描述
网站
特点
  • 后置车辆模块化设计，即插即用，适用于不同行业的不同应用;

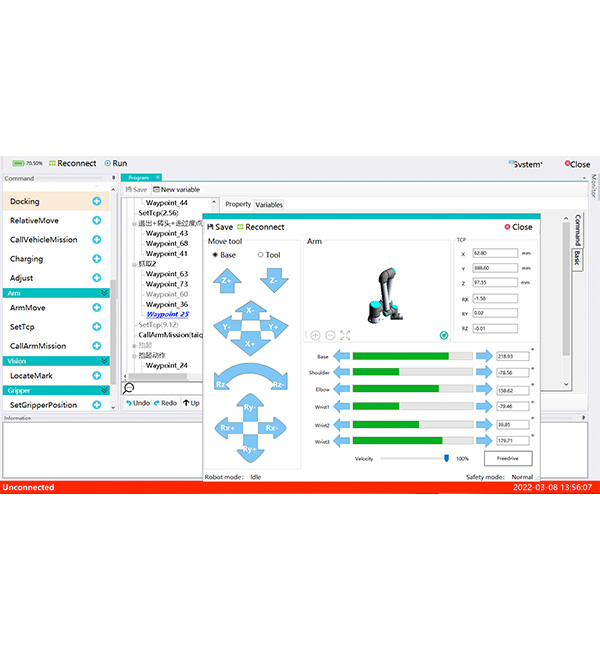

  • nCobot 集中式编程系统，为应用部署提供可视化、简单的编程方法，部署一个应用大约6小时;
  • 效率高，在保证安全的情况下，nCobot的最大速度为2m/s;
  • 提供完善的API，连接MES, SAP等上层系统。
  • 超高重放率，1小时充电，nCobot可连续运行8小时以上不间断，如有特殊需要，也可加入扩展电池组;
  • 行业内颇高的安全认证，通过CE、无尘室、ESD、EN1525、ISO15066等认证标准;
工作方式

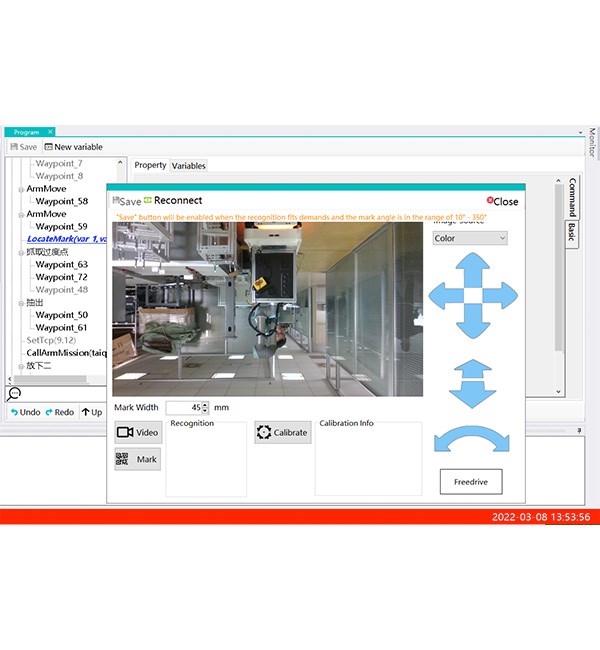

该产品为一款室内工业协作自主移动机器人，由一套硬件系统和软件系统配合工作并完成任务。首先，工程师通过内置的nCobot控制系统编写一套程序动作。然后，该系统会和机械臂、小车、夹爪、相机等硬件建立连接，进而解析程序动作，并将其转化为标准动作指令，发送给对应部件执行。通过视觉识别标定二维码，通过二维码调整UR位置后，自动计算出相对于二维码的目标位置。最后，由机器人手臂执行抓取、码垛、检测和插装等应用，并移动到下一个工位执行新的任务。

子应用
组装
表面处理
材料处理
其它
机器看护
产品分类
移动机器人
机器人兼容性
UR3
UR3e
UR5
UR5e
UR10
UR10e
UR16e
UR20
销售区域
  • Hong Kong
  • Japan
  • Macau
  • Singapore
  • 台湾
  • 中国大陆

所要求软件版本Polyscope software 5.11+ (e系列) / 3.15+ (CB系列)

尺寸产品尺寸：800mm*550mm*900mm
包装尺寸：950mm*750mm*1500mm

配套使用要求末端执行工具

套件内容

  • nCobot设备
    (设备主体包括MiR250、配电箱、设备控制箱、机器人安装平台等部件)
  • 自动充电桩(含充电桩及附件电缆)
  • 一个VL-MARK董事会
  • U盘(含设备使用手册等)
  • 一套视觉系统

认证与标准支持CE，FCC，UL标准，ESD版本需额外声明

许可类型一次性采购，如果需要定制功能，需要一定的开发费用

  • Integration Services
  • Feasibility Check
  • Risk Assessment
  • Training
