机器人套件ECBPI

zoom
zoom
zoom
zoom
zoom
zoom
zoom
zoom

机器人套件ECBPi是处理气密性和微孔性工件的理想选择，特别是在物流和包装领域。电动真空发生器ECBPi是一种智能、简单的解决方案，可独立于压缩空气产生真空。该套件包含安装夹具所需的全部组件，让装配和调试轻而易举。借助URCap的功能，这款夹具可以适应您的个性化需求。

查看完整描述
获取信息
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。
网站
特点
  • IO-Link接口：控制、调节和监控处理过程
  • 用于数据传输的NFC接口：通过智能手机上的Schmalz ControlRoom应用程序直接轻松访问工艺数据和其他设备设置
  • 工具直接产生真空：无需费时铺设电缆和软管
  • 卡口式连接：无需工具即可更换抽吸单元
  • 可以用预先配置的2或4单元替换抽吸单元。还可以购买包含120个零件的入门套件，以设置可自由配置的抽吸单元
工作方式

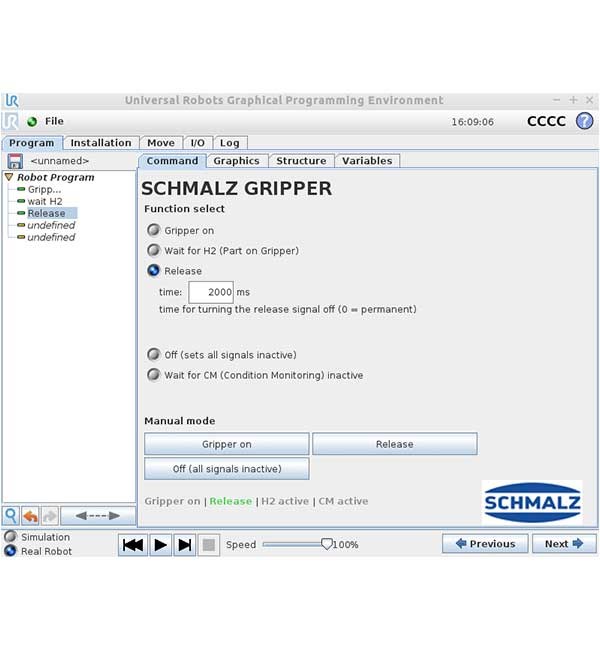

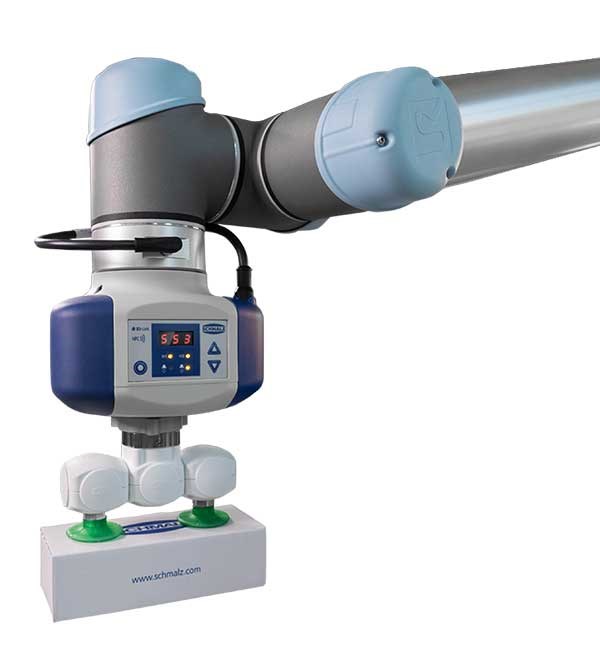

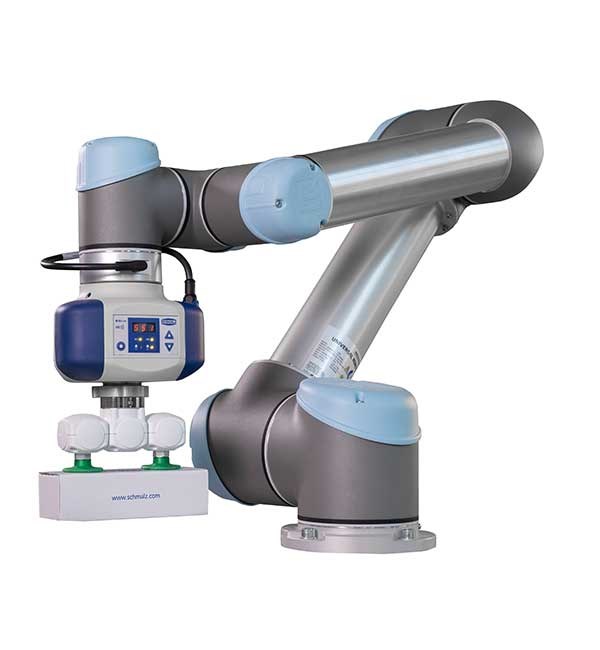

机器人套件ECBPI包含一个电动真空发生器，可轻松连接至用作夹具的真空末端执行器上，即插即用十分方便。将法兰板安装到机械臂上，然后安装真空发生器。然后通过连接电缆将真空发生器连接至机器人。通过卡扣式连接将真空末端执行器（夹具）连接到真空发生器。凭借随附的URCap，您可以轻松按照自身需求设置夹具。

子应用
材料处理
组装
产品分类
吸盘
机器人兼容性
UR3
UR3e
UR5
UR5e
UR10
UR10e
UR16e
Available globally

认证与标准
2006/42/EG 机械指令
2014/30/EU 电磁兼容指令(EMC)
EN ISO 12100 机械安全 - 基本概念，设计的一般原则 - 风险评估
EN 61000-6-3 / EN 61000-6-4 电磁兼容 - 排放
EN 61000-6-1 / EN 61000-6-2 4 电磁兼容 - 抗扰度
EN ISO 9409-1 工业机器人 - 机械接口
EN ISO 10218-8 工业环境用机器人 - 安全要求- 第2部分：机器人系统与集成

尺寸
长度：88.6 mm
直径：151.5 mm
重量：775 g

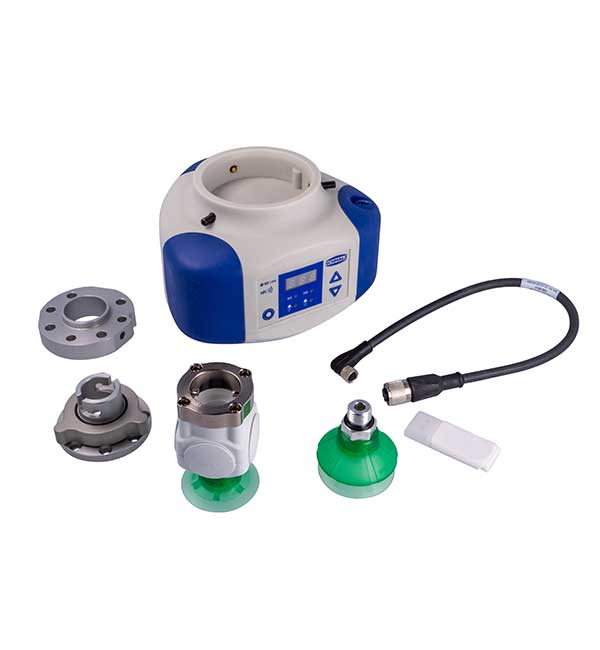

套件内容

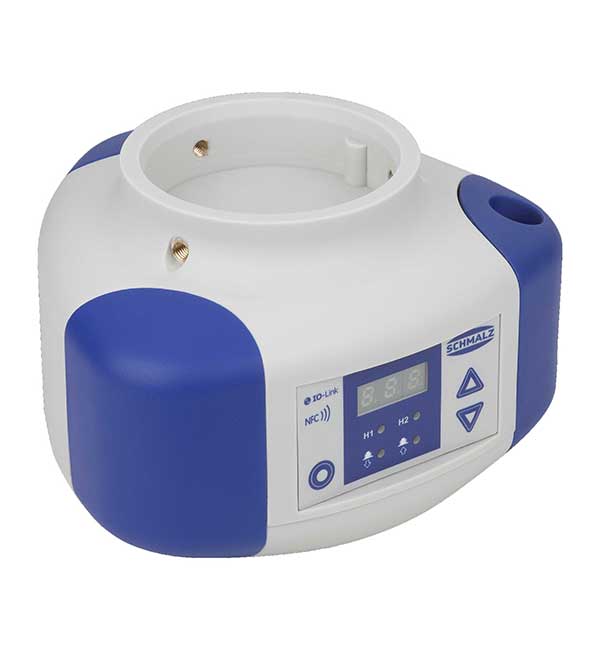

电动真空发生器（ECBPi）
法兰盘（适用于UR3 / UR5 / UR10）
法兰模块，用于连接真空发生器和夹具

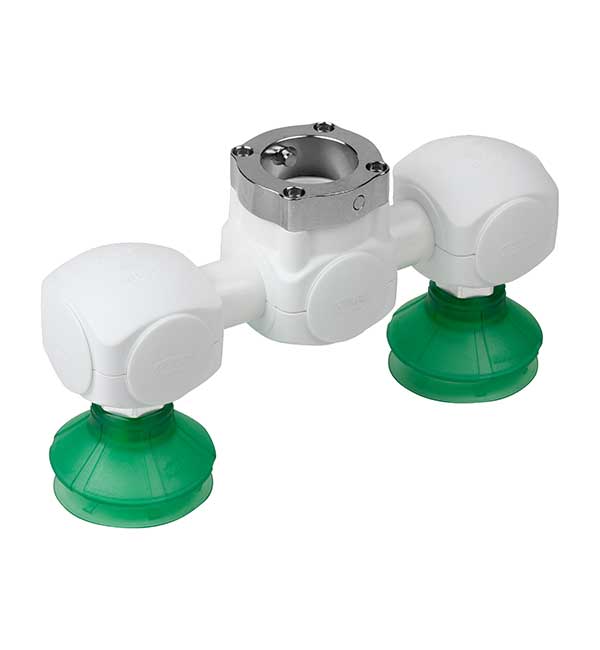

含有2个吸盘的真空末端执行器（波纹管吸盘和扁平吸盘）
连接电缆
带有URCap软件的U盘及使用手册
用户手册

配件

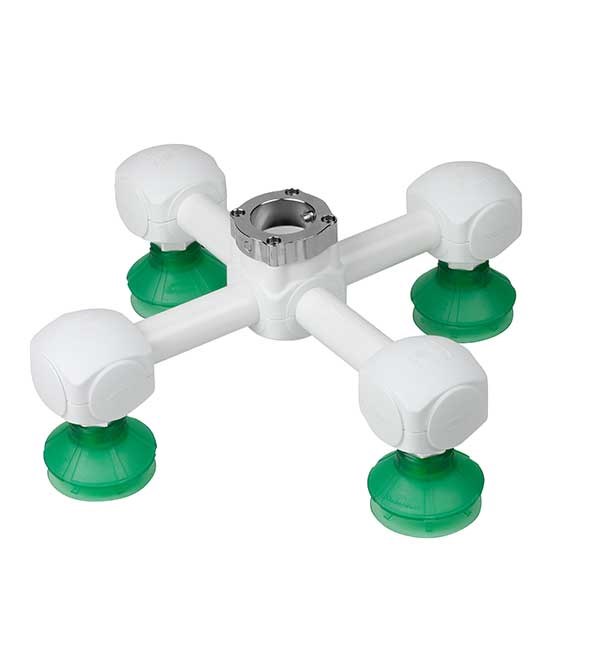

含有2或4个吸盘的真空末端执行器（波纹管吸盘和扁平吸盘）

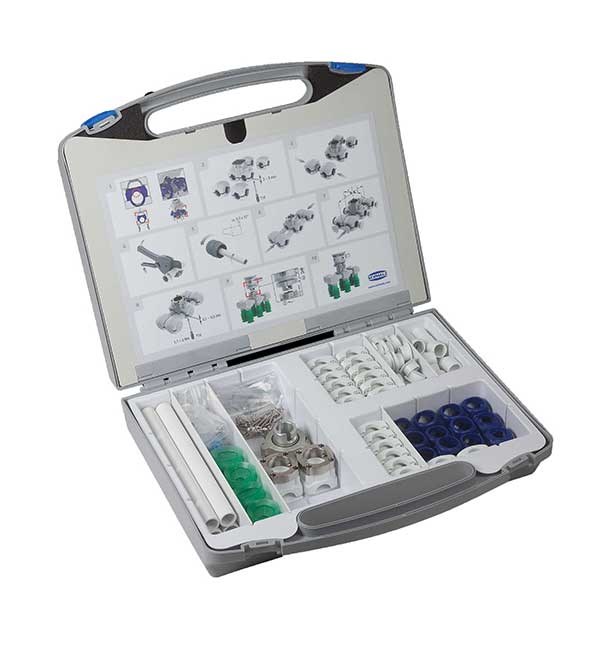

包含120个零件的真空末端执行器入门套件

许可类型
一次性购买。
