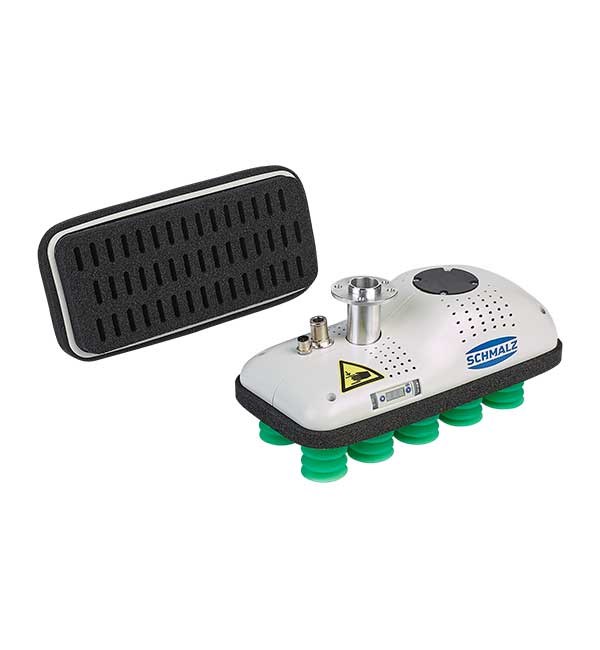

机器人套装FXCB吸盘

zoom
zoom
zoom
zoom
zoom
zoom

机器人套装FXCB旨在利用气动真空技术处理工件，是内部物流的理想之选。该套件包含安装夹具所需的全部组件，让装配和调试轻而易举。借助URCap的功能，这款夹具可以适应您的个性化需求。

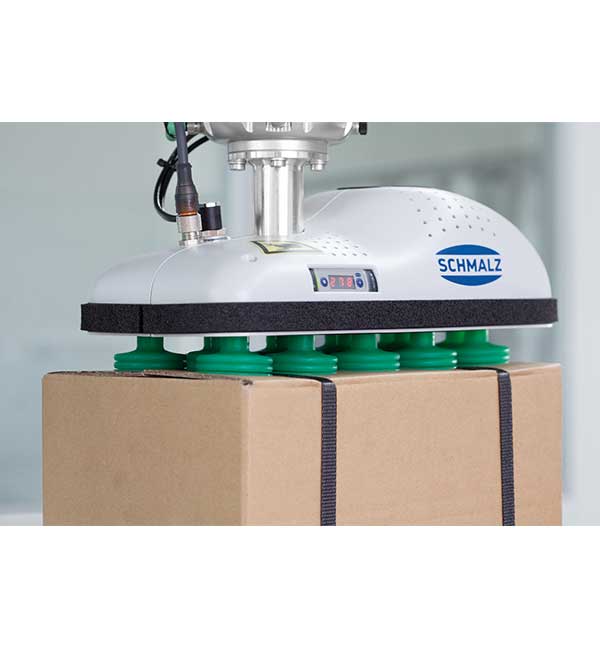

真空吸盘非常适合用于不平坦的工件。

查看完整描述
获取信息
网站
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。 转到我的项目
特点
  • IO-Link接口：控制、调节和监控处理过程
  • 用于数据传输的NFC接口：通过智能手机上的Schmalz ControlRoom应用程序直接轻松访问工艺数据和其他设备设置
  • 工具直接产生真空
工作方式

该套装包括一个真空区域夹具FXCB，一个专为优傲机器人设计的连接电缆和URCap，助您轻松安装。只需使用附带螺丝将夹具安装到协作式机器人的手腕上即可。

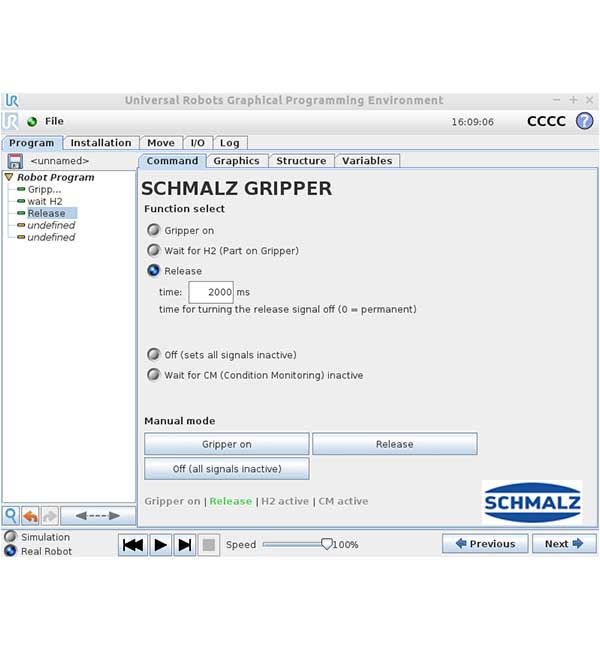

用连接电缆将夹具连接到机器人的第一个腕关节。使用真空软管（作为配件提供）将夹具连接到压缩空气源。凭借随附的URCap，您可以轻松按照自身需求设置夹具。

子应用
材料处理
产品分类
吸盘
机器人兼容性
UR3
UR3e
UR5
UR5e
UR10
UR10e
UR16e
UR20
Available globally

认证与标准：
2006/42/EG 机械指令
2014/30/EU 电磁兼容指令(EMC)
EN ISO 12100 机械安全 - 基本概念，设计的一般原则 - 风险评估
EN 61000-6-3 / EN 61000-6-4 电磁兼容 - 排放
EN 61000-6-1 / EN 61000-6-2 4 电磁兼容 - 抗扰度
EN ISO 9409-1 工业机器人 - 机械接口
EN ISO 10218-8 工业环境用机器人 - 安全要求 - 第2部分：机器人系统与集成
DIN ISO / TS15066 机器人及机器人装置 - 协作式机器人

尺寸：
长度：331 mm
宽度：159 mm
高度：164 mm
重量：1.85 kg

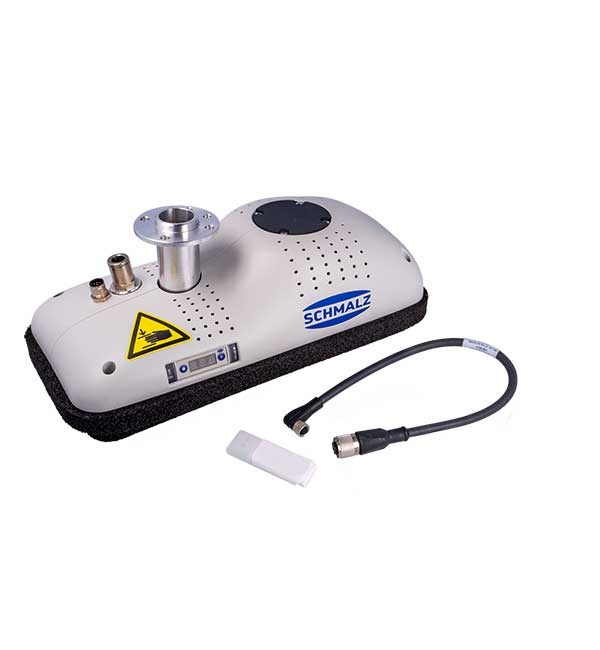

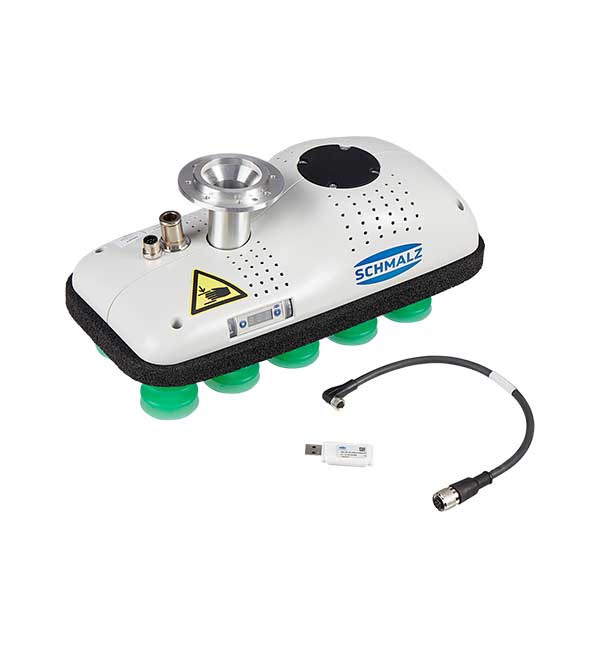

套件内容：
带吸盘的真空区域夹具FXCB
连接电缆
带有URCap软件的U盘及使用手册
用户手册
真空软管可作为附件提供。

许可类型：
一次性购买
