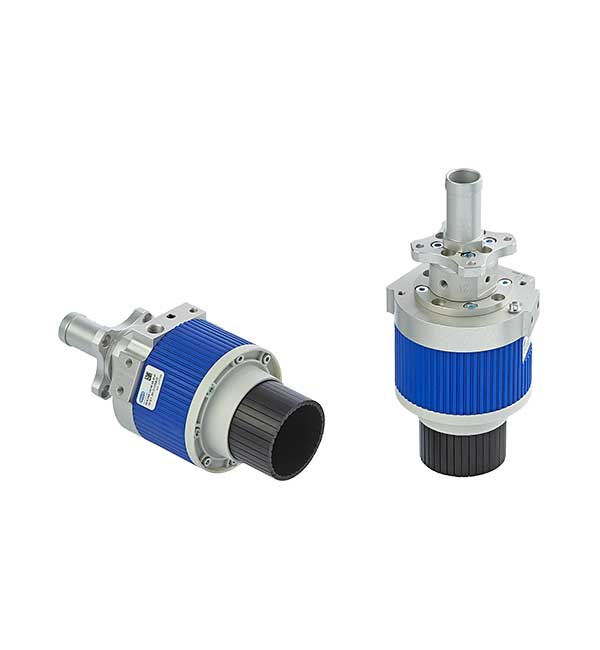

SCG-HSS流动夹持器

zoom
zoom
zoom
zoom
zoom
zoom

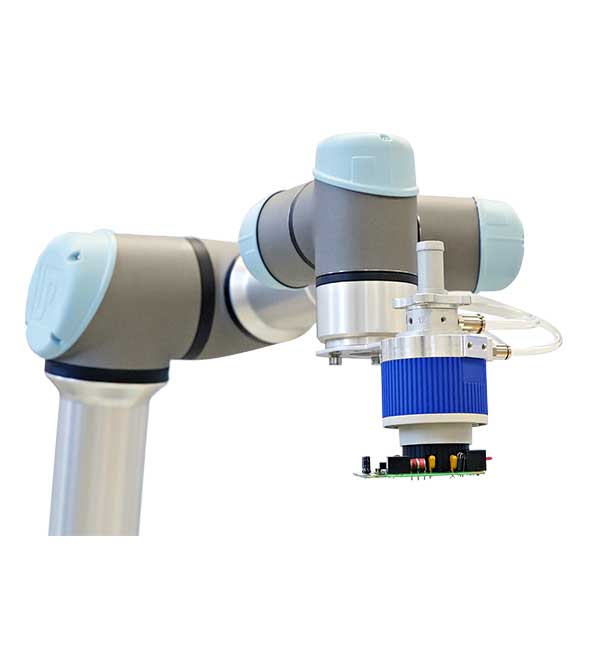

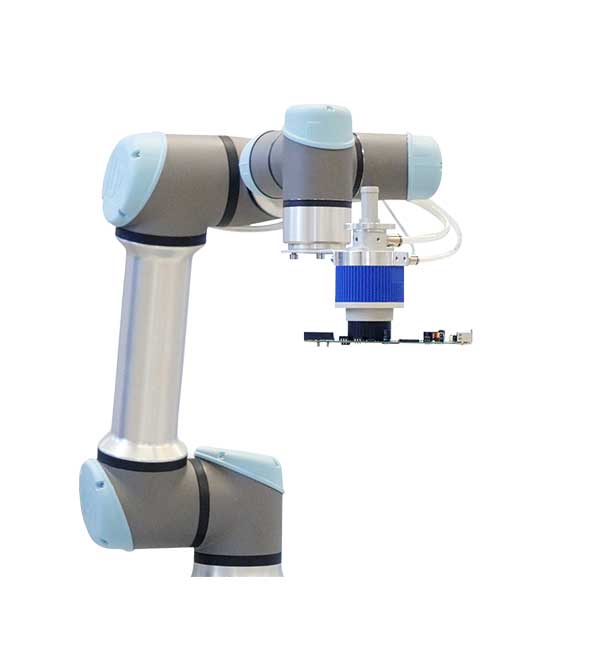

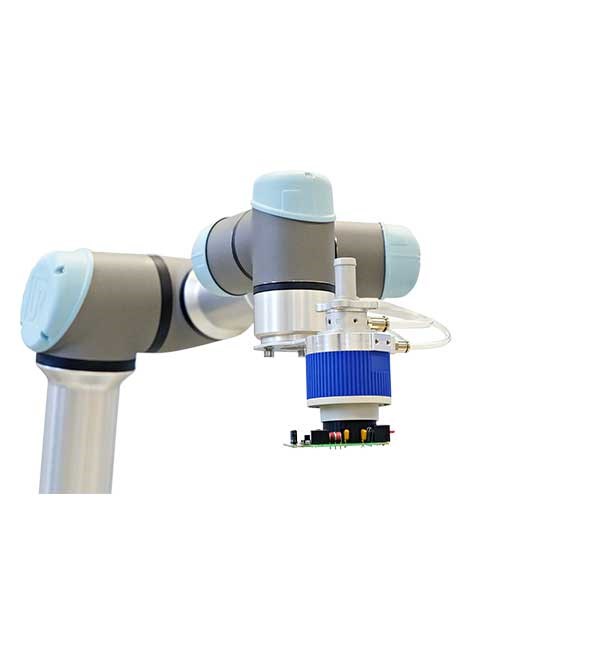

SCG-HSS流动夹持器设计用于高度结构化、尺寸稳定的工件，高度差不超过25mm。抓取器由两个核心元件组成：集成的真空发生器和灵活可调的抓取面。这是由针幕实现的，针幕轻轻地适应工件的表面结构，并气动固定在其位置上。这种对单个组件轮廓的适应性消除了昂贵的设置时间。这样就可以以较低的运行成本处理批量尺寸1的工件。由于采用了符合ESD标准的设计，可以防止不受控制的静电放电。这使得夹持器适用于PCB处理以及注塑机的下料和包装工艺。

查看完整描述
获取信息
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。
网站
特点
  • 轻柔的操作，尽可能小的表面压力，适用于有开口和低占用率的工件。
  • 由于符合ESD标准的设计，可以防止敏感元件的不受控制的静电放电。
  • 紧凑的设计和较低的抓取重量，适合处理小型部件。可以将多个夹持器组合起来处理大型工件。
  • 高吸力、低耗气量，在保证安全抓取的同时，降低了操作成本。
工作方式

通过压缩空气脉冲使夹持器的针脚延伸。当放置在工件上时，它们会适应待处理物体的表面几何形状。销轴的夹紧是通过压缩空气激活的。然后开启真空发生装置，以提升工件并将其移动到目标位置。通过停用真空的产生，工件被放下，夹持器从工件上释放。销子的夹持被释放，从而为另一个表面轮廓的夹持表面做准备。

子应用
组装
材料处理
产品分类
吸盘
机器人兼容性
UR3
UR3e
UR5
UR5e
UR10
UR10e
UR16e
Available globally

尺寸宽: 73 mm
高: 144 mm
重量: 825 g

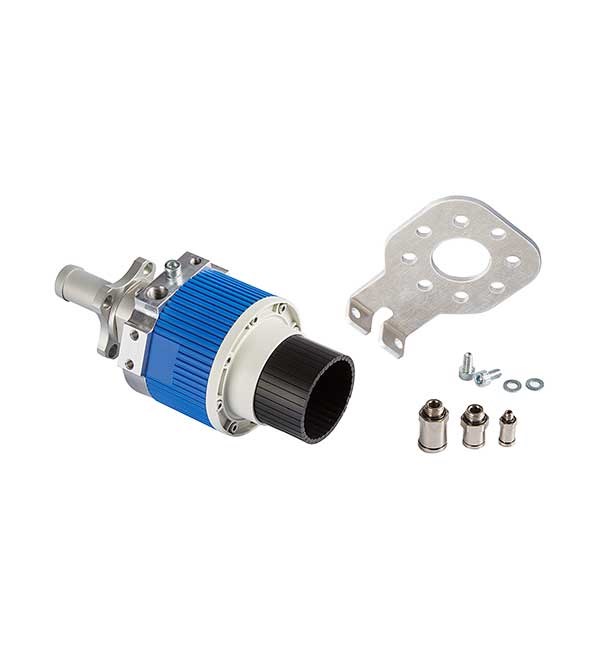

套件内容Flow Gripper SCG-HSS
Assembly set
Pressure-Reduction Valves
Push-in Fittings

许可类型一次性购买
