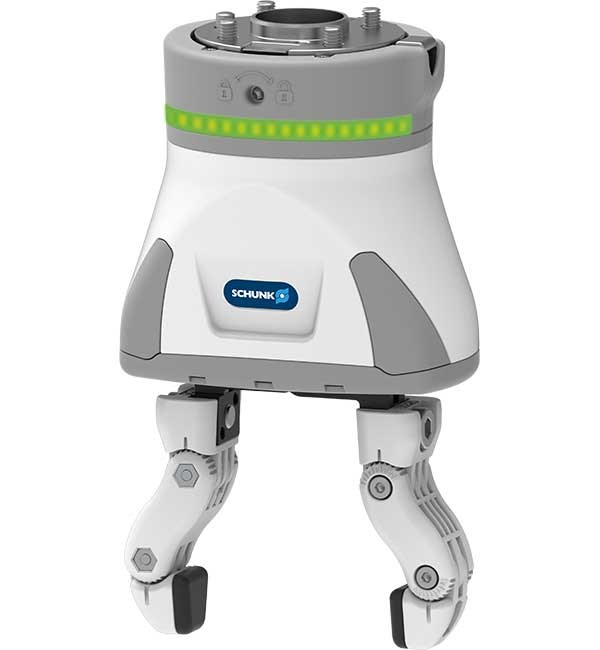

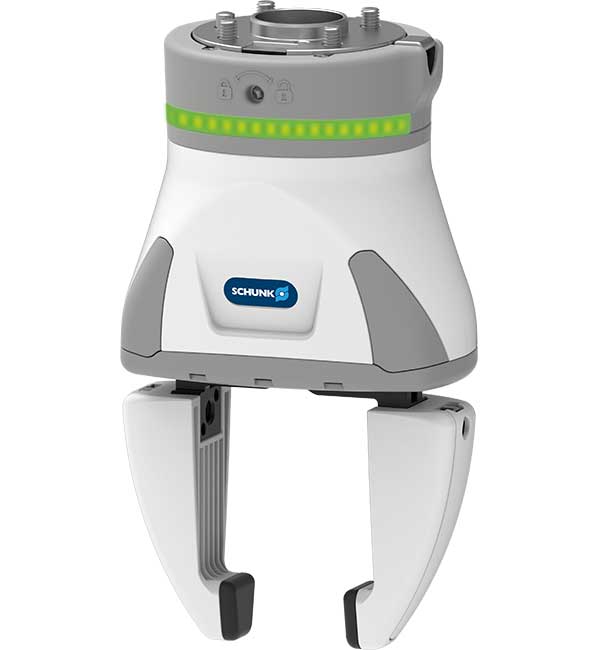

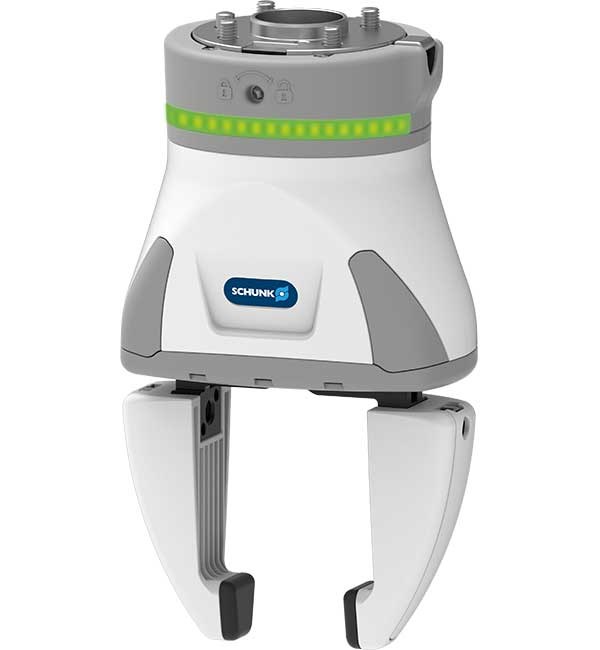

雄克CO-ACT 机械手 EGH

zoom
zoom
zoom
zoom
zoom
zoom
zoom

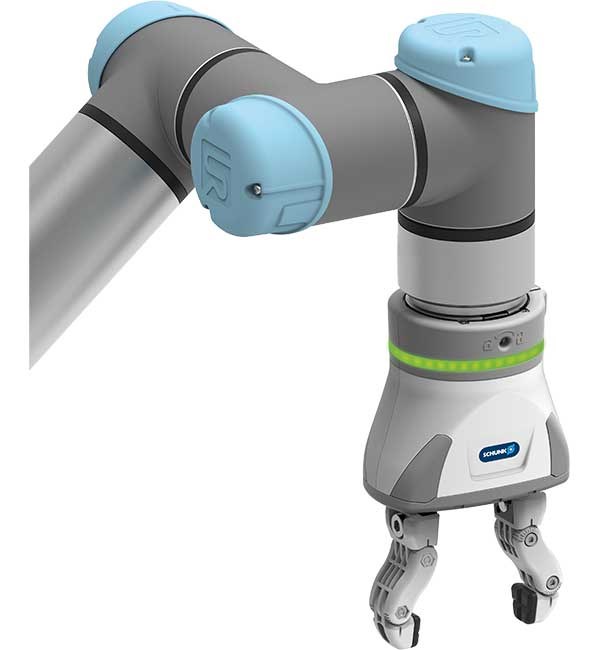

易于调节且灵活的协作式机器人机械手
得益于较长且易于变化的行程，电动雄克CO-ACT机械手EGH是优傲协作式机器人的有力补充，可助力轻松实现自动化。这款产品尤其适合处理、组装等任务，是电子行业的理想之选；可以有效夹持中小型工件。雄克CO-ACT机械手EGH能够轻松将夹具集成到协作式机器人的应用之中。这款产品还提供灵活的行程控制、平行夹持运动以及可选的灵活手指。夹具的安装和控制也非常简单。订购完整的入门套件，快速安装雄克CO-ACT机械手EGH。入门套件包括所有必要组件，让您能够轻松无忧地将夹具安装到优傲协作式机器人上。

查看完整描述
获取信息
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。
网站
特点
  • 行程长且可自由编程
  • 整个行程支持平行夹持运动，带来恒定的夹持力
  • 集成状态显示

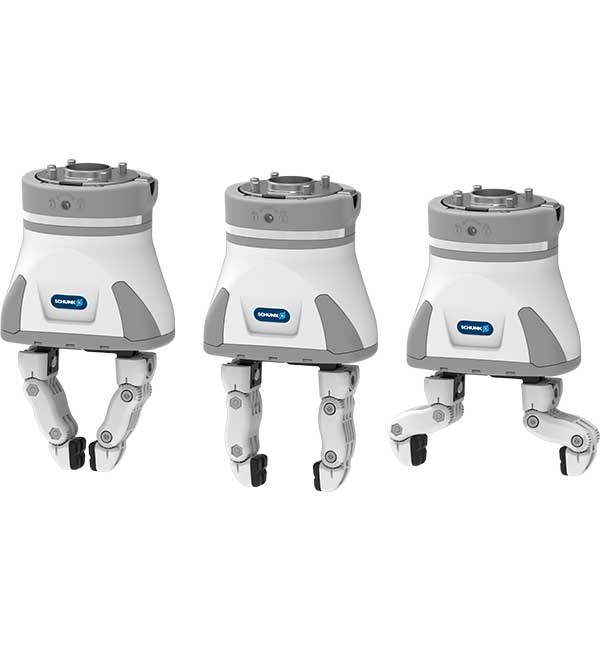

  • 可直接连接的灵活手指
  • 即插即用
工作方式

多级齿轮传动装置由无刷伺服电机驱动。夹具夹爪由三个平行的输出小齿轮驱动，它们共同构成了齿条。因此，夹爪由齿条和小齿轮驱动，该机构再将伺服电机和齿轮箱的旋转运动转换为夹爪的线性运动。

子应用
组装
机器看护
机器人兼容性
UR3
UR3e
UR5
UR5e
UR10
UR10e
UR16e
Available globally

所需软件版本
CB系列：软件版本3.11或更高版本
e系列：软件版本5.5或更高版本

配套使用要求
24V直流电源（通过机器人控制器）

认证与标准
EMC-指令2014/30/EU
机器指令2006/42/EG
详情见操作手册！

尺寸
114 x 86,5 x 133 mm

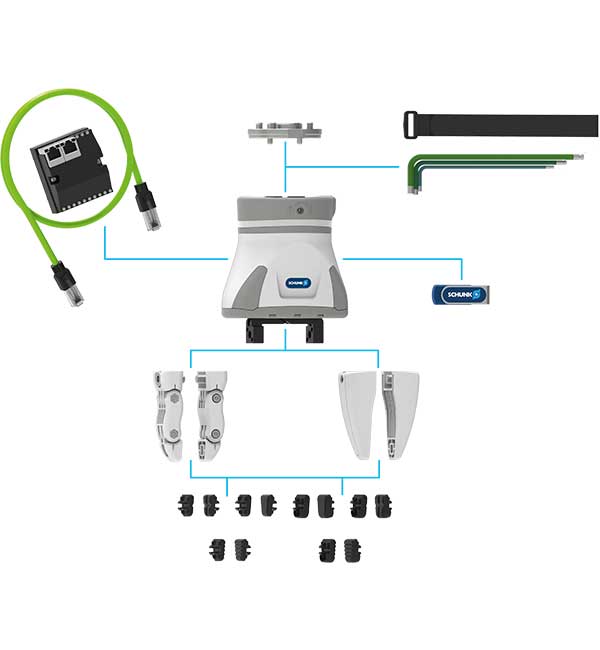

套件内容

  • Co-act机械手EGH
  • 带有URCap插头的U盘
  • 适用于机器人的ISO法兰
  • 带有Modbus接口的IO-Link-主站
  • 固定和灵活的顶部夹爪
  • 硬质和软质指尖套
  • 工具（内六角扳手）
  • 固定电缆的魔术贴

许可类型
一次性购买。
