自动螺丝驱动系统 SPATZ

This product is not available in your region (USA)
zoom
应用套件
zoom
应用套件
zoom
应用套件
zoom
应用套件
zoom
应用套件
zoom
应用套件
zoom
应用套件
zoom
应用套件
zoom
应用套件

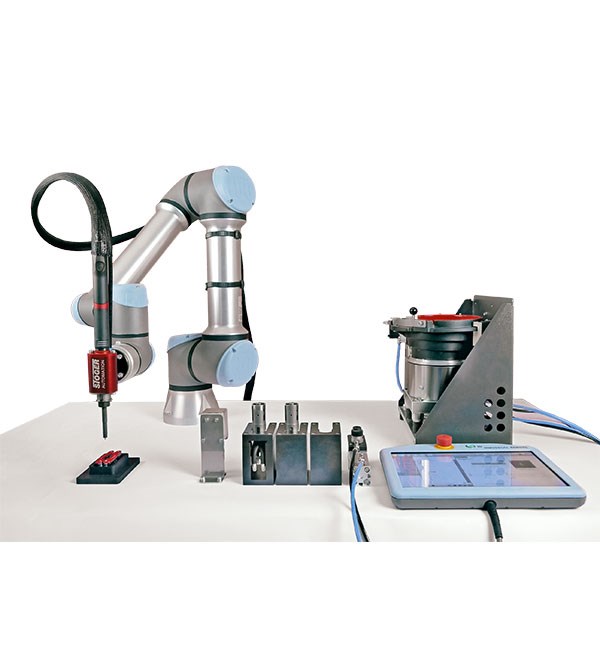

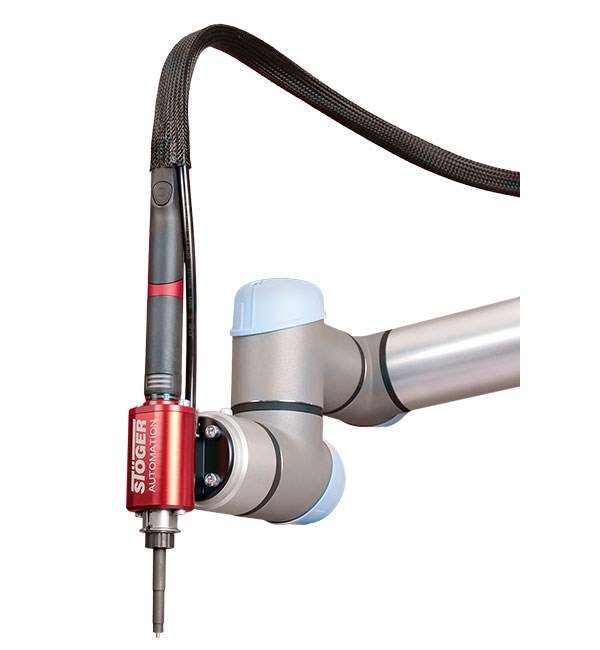

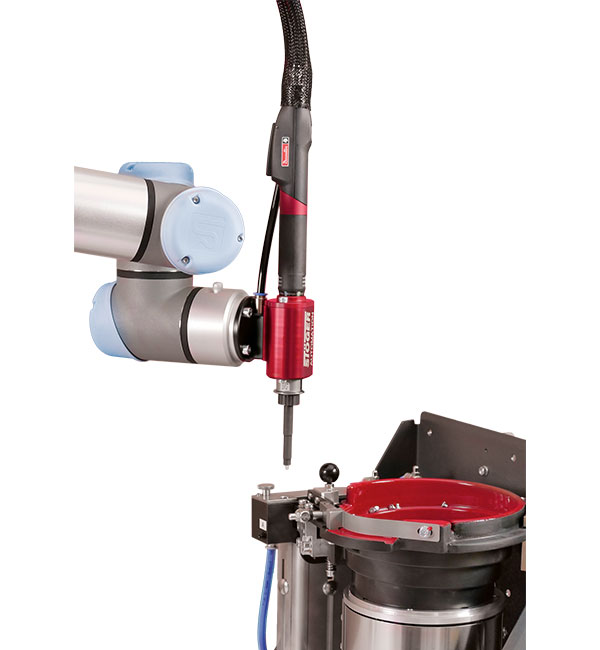

SPATZ 是一种螺丝驱动机器人，具有自动换刀功能，并通过“拾取和放置”系统自动供给紧固件。可以使用 SPATZ 拧紧不同几何形状的紧固件。这是通过模块化的设计并使用各种螺丝驱动刀具和夹具来实现的。可以随时调整以适合更多应用。紧固件通过“拾取和放置”系统来供给。根据型号，供给装置有一个内部或外部供应装置。SPATZ Cap 已经提供程序结构，只需再示教相应位置，这样就将调试时间减至尽可能低。

查看完整描述
网站
特点
  • 模块化的系统灵活的系统布局
  • 可以同时运行多达 15 种螺丝驱动程序
  • 各种刀具可调整
  • 一个系统可以执行多个工作步骤
  • 轻松进行系统扩展
  • 编码器检查是否取走了正确的刀具（可选）

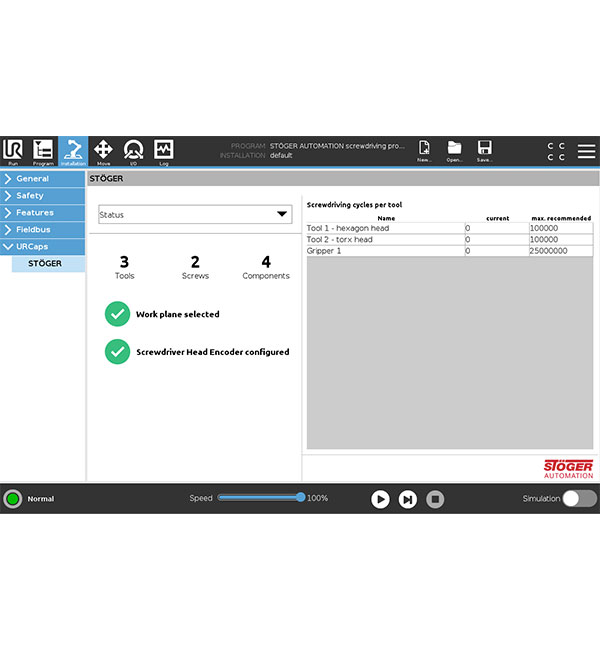

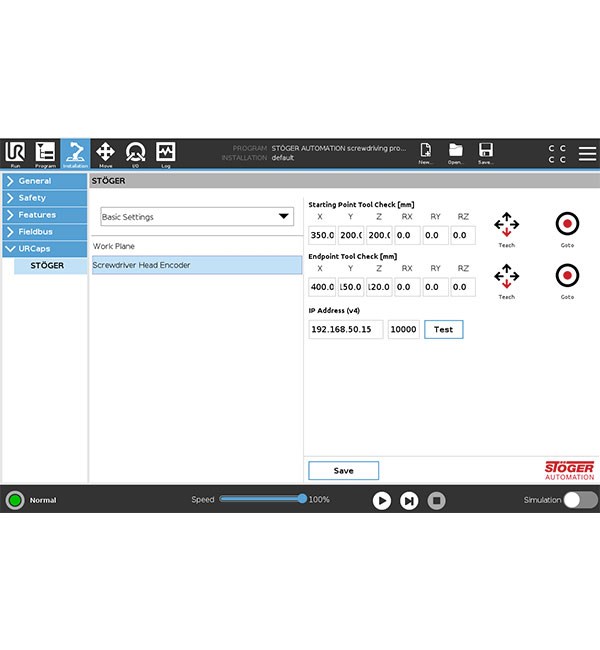

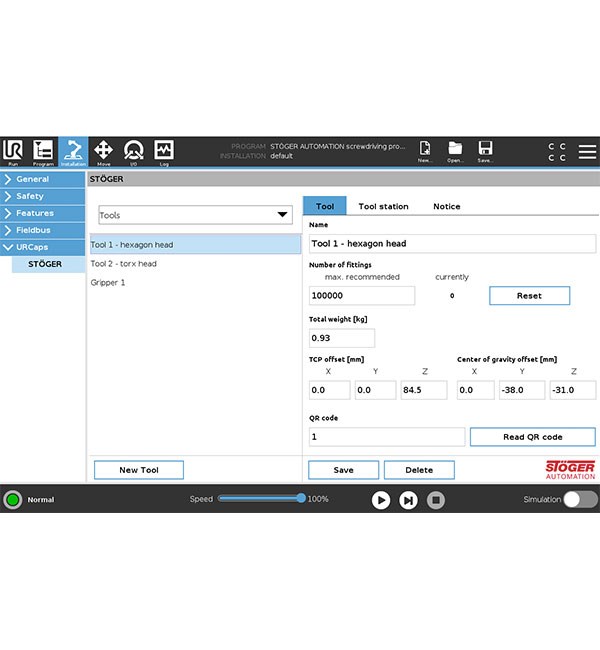

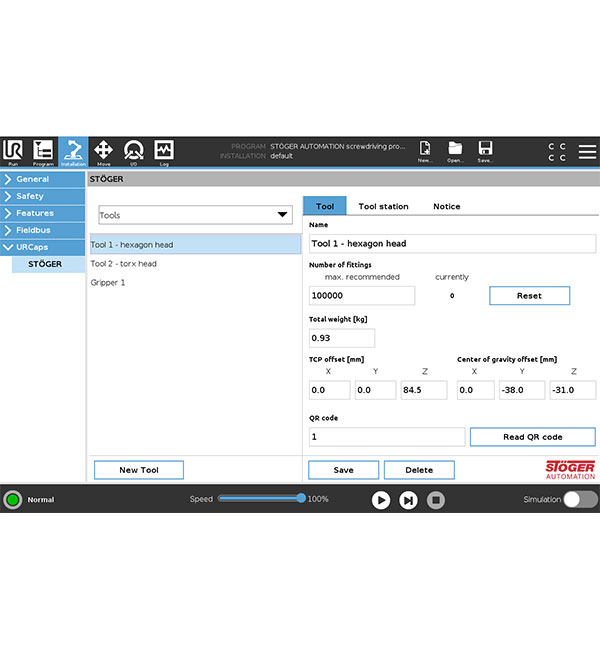

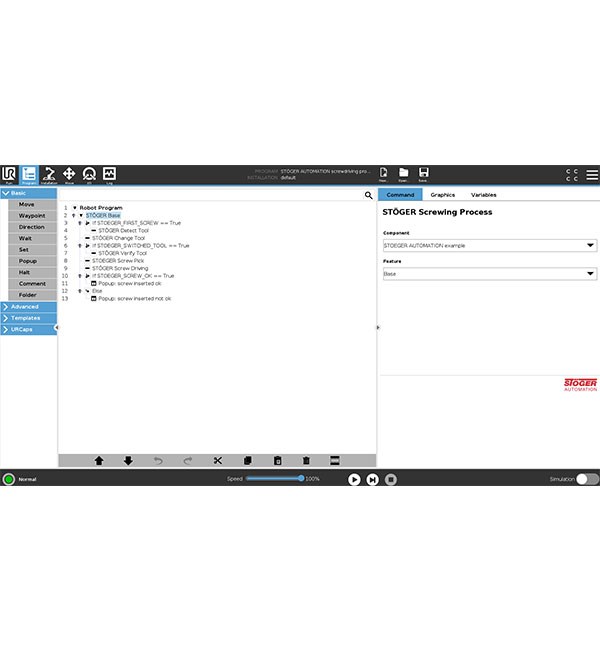

  • 通过认证软件 UR-Cap 轻松对机器人进行程序更改（使用 UR e 系列机器人时）
  • 集成的自动顺序控制
  • 通过对螺丝驱动结果记录留档实现质量保证
工作方式

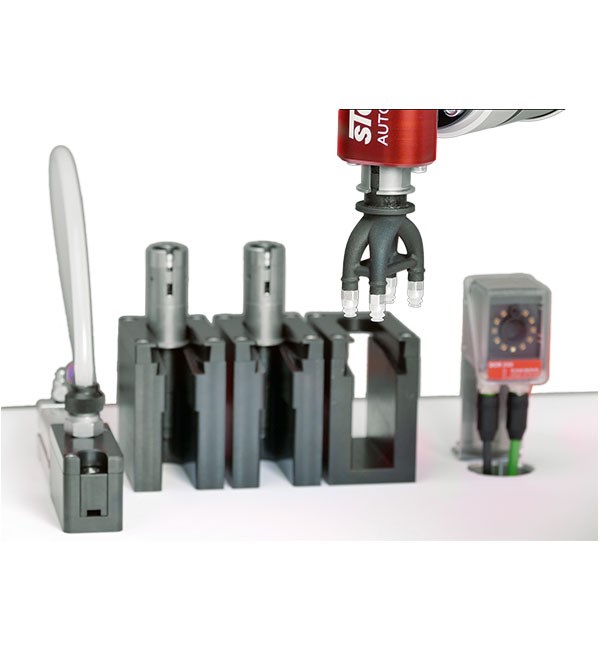

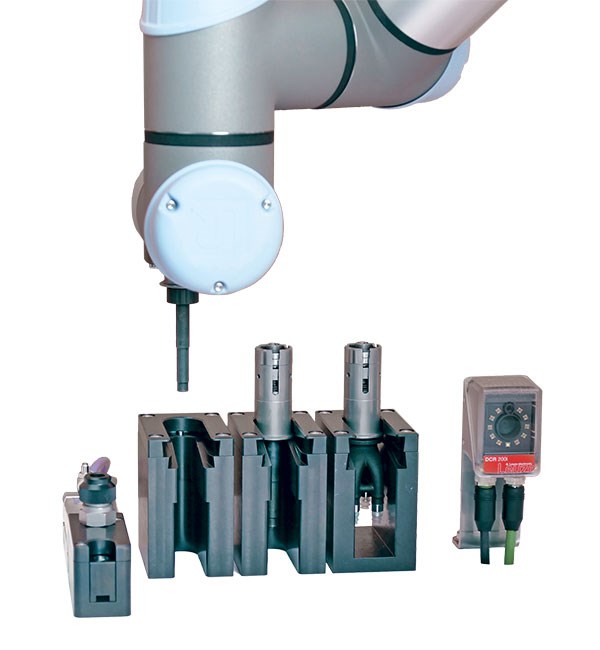

SPATZ通过分离刀架和刀具实现高灵活度。它可以用于拧紧一种螺丝类型，也可用于拧紧不同几何形状的螺丝。模块化的设计还允许调整夹具。这意味着除了简单的螺丝驱动应用外，还可以设想更广泛的应用场景，如夹持部件、固定球体或销钉、用不同的紧固件拧紧一个或多个部件。借助 SPATZ-Cap，用户可以非常轻松快捷地给机器人的运动序列编程，因为只需再示教相应位置。刀具储存在刀具站中。可选的读取装置可用来检查是否拾取了正确的刀具。如果检测到不正确的刀具，系统将停止，并发出错误消息。连接头通过“拾取和放置”系统来供给。标配一个内部供应装置。也可选择使用外部供应装置，例如在螺丝驱动位置空间受限的情况下。此外，外部供应装置可缩短空转运行时间，因此还有助于缩短循环时间。

子应用
组装
机器人兼容性
UR3e
UR5e
UR10e
UR16e
销售区域
  • Australia
  • Austria
  • Bangladesh
  • Belarus
  • Belgium
  • Bulgarian
  • Croatia
  • Czech Republic
  • Denmark
  • Estonia
  • Finland
  • France
  • Georgia
  • Germany
  • Greece
  • Hong Kong
  • Hungary
  • Iceland
  • India
  • Indonesia
  • Ireland
  • Israel
  • Italy
  • Japan
  • Latvia
  • Lithuania
  • Luxembourg
  • Macau
  • Malaysia
  • Malta
  • Netherlands
  • New Zealand
  • Norway
  • Oman
  • Philippines
  • Poland
  • Portugal
  • Qatar
  • Romania
  • Russia
  • Saudi Arabia
  • Singapore
  • Slovakia
  • Slovenia
  • South Korea
  • Spain
  • Sri Lanka
  • Sweden
  • Switzerland
  • Thailand
  • Turkey
  • United Arab Emirates
  • United Kingdom
  • Vietnam
  • 台湾
  • 中国大陆

软件版本要求软件版本 5.4+

配套使用要求压缩空气 5-6 bar，电源 230V。

认证与标准机器交货时将附带依据 EC 机械指令 2006/42/EG 的纳入声明。

套件内容螺丝驱动装置、供给装置、换刀装置、刀具、配件。

许可类型一次性购买。
