Dragon 15

zoom
应用套件
zoom
应用套件
zoom
应用套件
zoom
应用套件

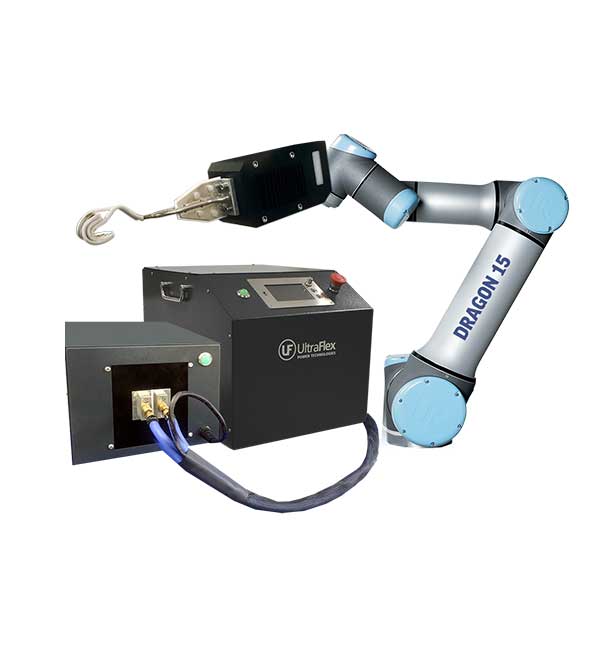

Dragon 15集成Ultraflex W15（15kW）感应加热系统和优傲机器人，可实现完全自动化的铜焊工艺。感应加热系统已取代了此前业内广泛使用的过时且不安全的火焰钎焊。

集成感应圈直接安装于机器人手臂上，可精确定位且热量可控，能可靠地铜焊多个关节。

查看完整描述
获取信息
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。
网站
特点
  • 通过精确控制的定位、线圈功率和热循环，实现高品质和可重复的铜焊关节。
  • 根据管的尺寸和铜焊合金的类型，可在4-8秒内铜焊一个关节。
  • 全自动工艺，无需操作员辅助。

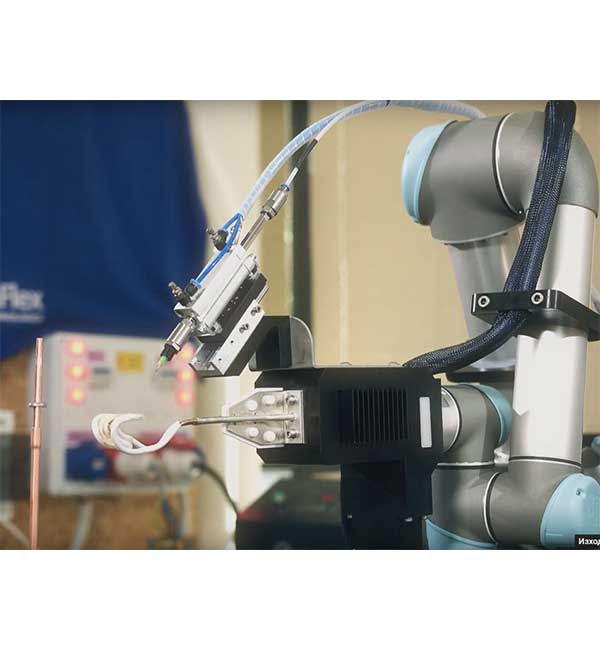

  • 可与铜焊环（预成型件）一起使用或集成自动送丝器，以实现全自动铜焊工艺。
  • 可编程，铜焊复杂组装作业中的多个关节。
  • 监控铜焊每个关节所施加的能量，并与参考值相比较，以实现精确的品质控制。
  • 可轻松编程这种灵活的系统，以适应不同的工艺要求。
  • 环境清洁且安全，无火焰或有毒气体。
工作方式

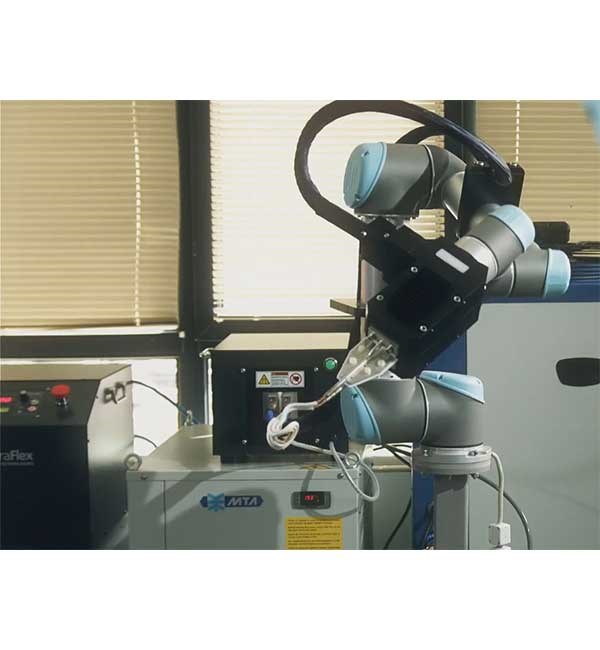

Dragon 15能自动一致地铜焊位于组装件预定位置的多个关节。在铜焊工艺之前，将合金环放置到关节当中。经编程的机器人系统移动到各个关节，在预编程的时间内施加能量，确保可重复的可靠铜焊工艺。不使用铜焊环时，可用可选的自动送丝系统来进料铜焊合金。

可以集成系统以适应不同的生产速度和多个组装件。

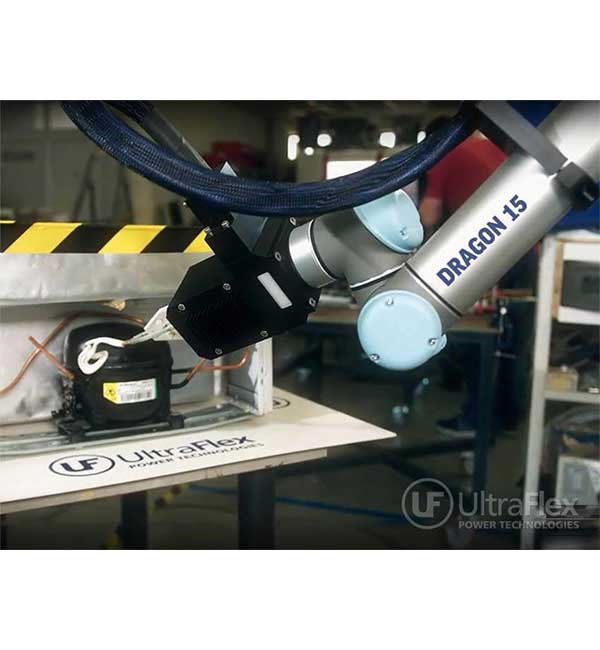

可用于从铜到铜、铜到铁、黄铜到铜铝管的铜焊。Dragon 15非常适合用于冰箱压缩机、热交换器、家用电器部件和复杂HVAC配件的无焰铜焊。

子应用
焊接
机器人兼容性
UR10
UR10e
UR16e
Available globally

所需软件版本
CB系列：Polyscope 3.7+
e系列：Polyscope 5.3+

认证与标准
CE认证

尺寸
不同尺寸的多个盒子

套件内容

  • 电源
  • 热站
  • Robobraze热站
  • 冷冻机
  • 机器人
  • 组装套件。

许可类型
一次性购买，包括URCap
