3D 鼠标

This product is not available in your region (USA)
zoom
zoom
zoom
zoom
zoom

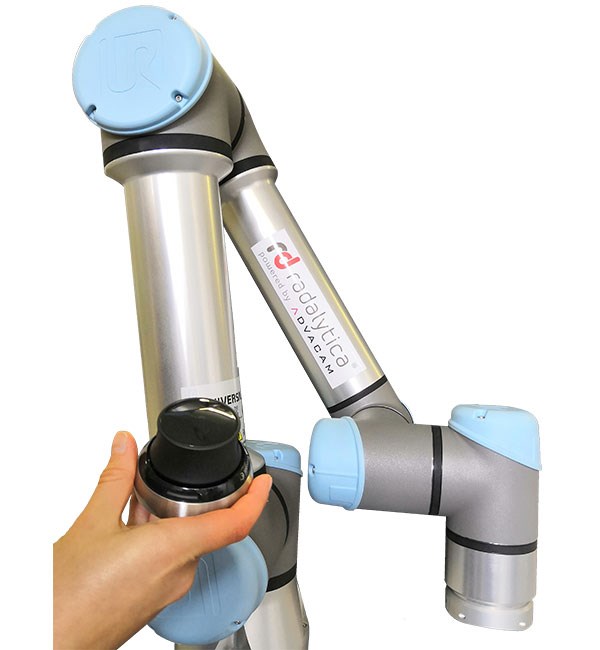

3D鼠标是一款操作简单的插件，可以实时控制机器人在任意方向移动或旋转。简单地说，当您移动或倾斜3D鼠标时，机器人将执行相同的倾斜或移动动作。使用自由驱动按钮,UR用户可以轻松手动定位机器人。但是，当操作员不在机器人附近时，则可以通过3D鼠标复制相同的动作。例如，如果机器人在另一个房间内或操作员接触不到时，3D鼠标就可以派上用场。3D鼠标可用于在编程期间示教机器人或实时控制机器人执行扫描、绘画、拍摄视频、拾取和放置等任务。

查看完整描述
网站
特点
  • 直观的实时动作

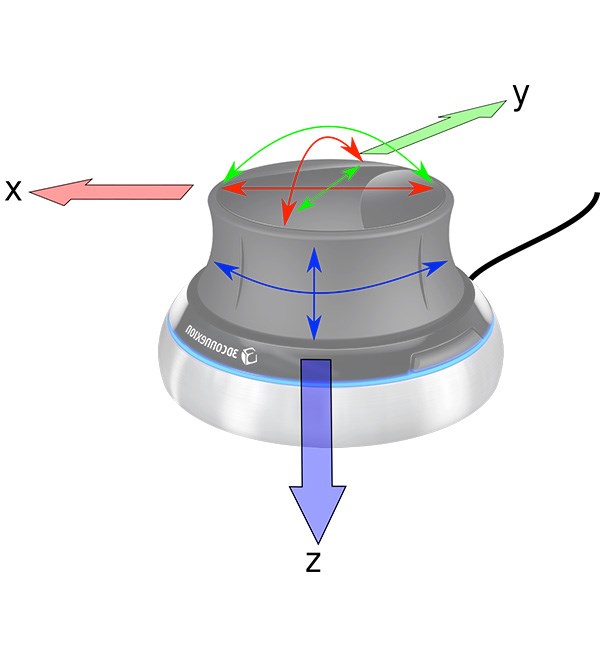

  • 组合3个平移轴和3个旋转轴
  • 停止机器人在所选轴方向上的运动
  • 独立控制平移和旋转速度
  • 快速选择“仅旋转”、“仅平移”或“旋转+平移”模式。
  • 选择不同的工具（TCP）
  • URCap用户界面
工作方式

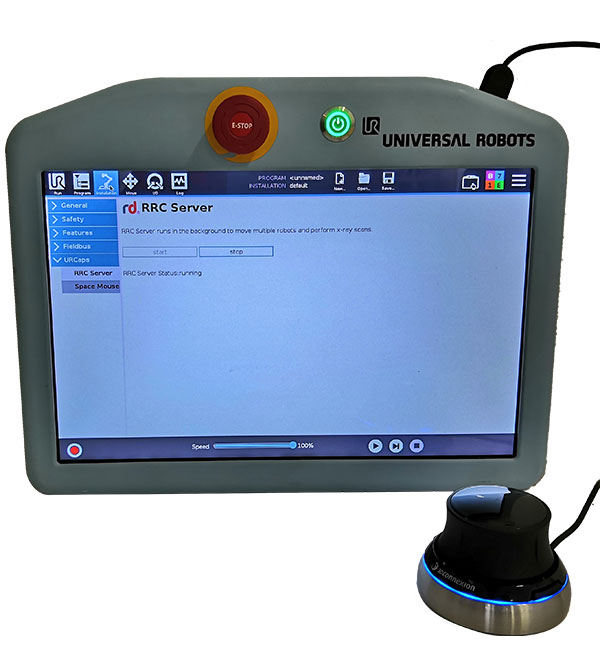

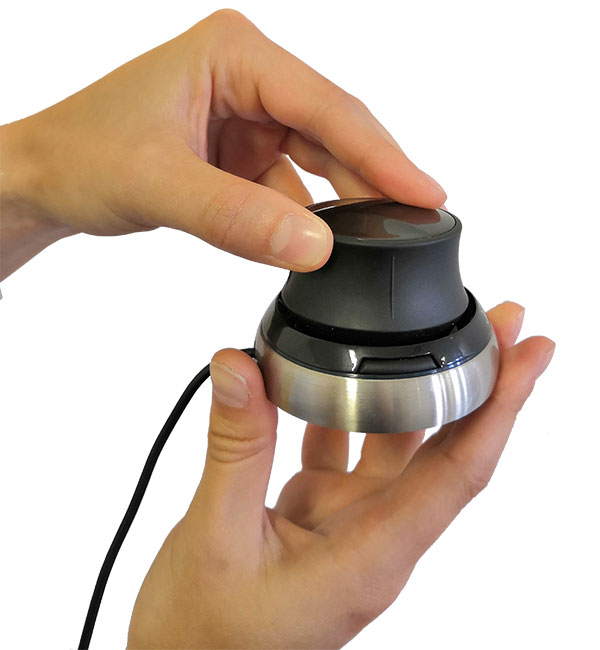

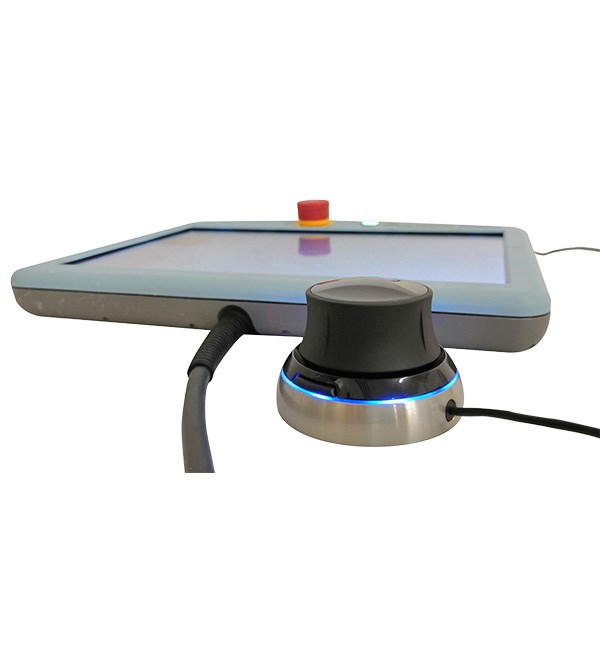

将SpaceMouse直接插入任何优傲机器人（或示教器）即可实时控制机器人工具。使用3D鼠标移动机器人十分直观，可以用手握住机器人并在任意方向进行平移和旋转。当您移动或倾斜SpaceMouse时，机器人将执行相同的倾斜或移动动作。利用URCap用户界面精确控制运动速度和轴。

子应用
质量检测
机器人兼容性
UR3
UR3e
UR5
UR5e
UR10
UR10e
UR16e
UR20
销售区域
  • Australia
  • Austria
  • Bangladesh
  • Belarus
  • Belgium
  • Bulgarian
  • Croatia
  • Czech Republic
  • Denmark
  • Estonia
  • Finland
  • France
  • Georgia
  • Germany
  • Greece
  • Hong Kong
  • Hungary
  • Iceland
  • India
  • Indonesia
  • Ireland
  • Israel
  • Italy
  • Japan
  • Latvia
  • Lithuania
  • Luxembourg
  • Macau
  • Malaysia
  • Malta
  • Netherlands
  • New Zealand
  • Norway
  • Oman
  • Philippines
  • Poland
  • Portugal
  • Qatar
  • Romania
  • Russia
  • Saudi Arabia
  • Singapore
  • Slovakia
  • Slovenia
  • South Korea
  • Spain
  • Sri Lanka
  • Sweden
  • Switzerland
  • Thailand
  • Turkey
  • United Arab Emirates
  • United Kingdom
  • Vietnam
  • 台湾
  • 中国大陆

是否含 URCap 插件
是

所要求软件版本
CB 3.9.0或更高版本
e系列 5.3.0或更高版本

配套使用要求
3Dconnexion Space Mouse Compact

尺寸
77 mm. x 77 mm. x 54 mm.

兼容性
UR3e, UR5e, UR10e, UR16e
UR3, UR5, UR10 (CB3.1, CB3.0)

套件内容
3D鼠标 - 通过USB连接到机器人
USB驱动器 - 包含手册和软件

许可类型
一次性购买
