Aim FD HighV

zoom
zoom
zoom
zoom
zoom
zoom

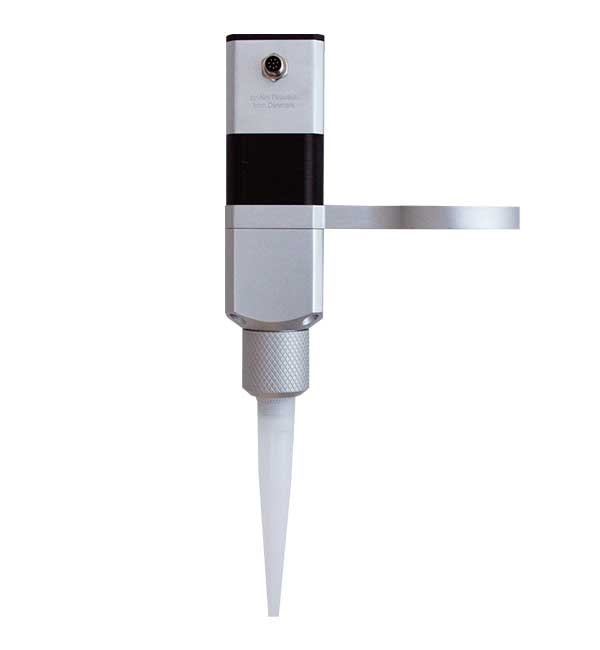

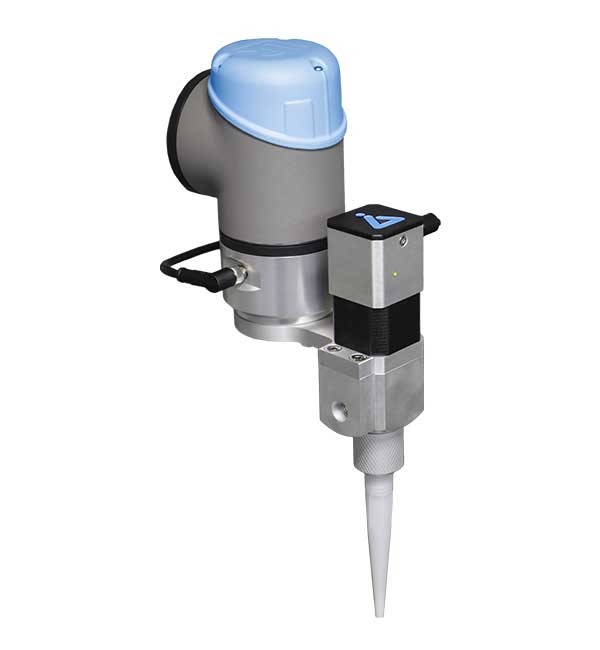

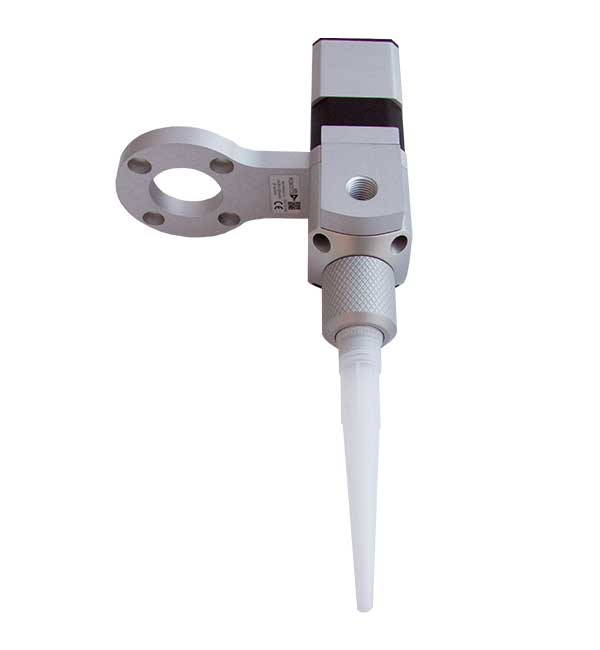

FD High-V是一项正在申请专利的纯电动分配解决方案，无需压缩空气，可以将其安装到生产线上的UR协作机器人，进而实现自动精准点胶，可用于自动分配中等粘度到高粘度的流体。

查看完整描述
获取信息
网站
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。 转到我的项目
特点

无需压缩空气的纯电动方案：
即插即用，准确点胶
使用一个M8 8针连接器即可连接UR机器人

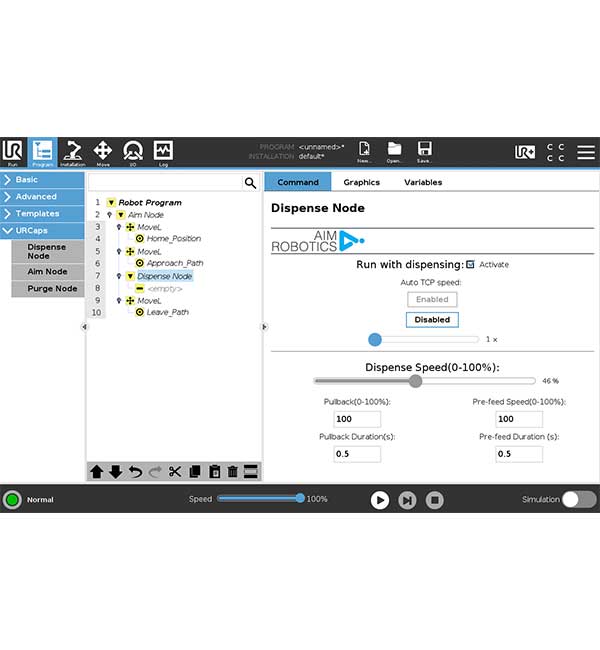

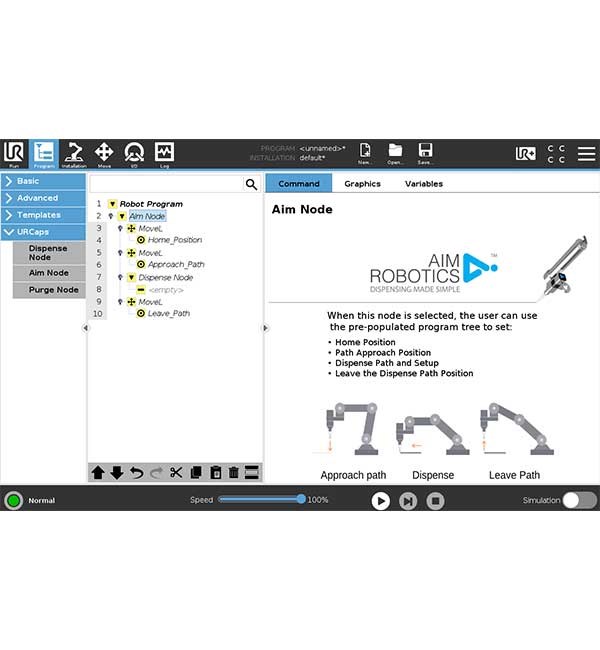

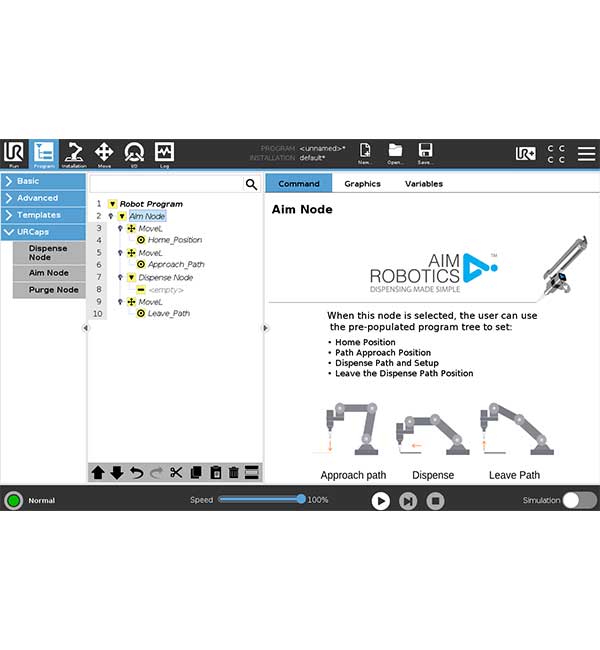

集成软件：专门设计的URcaps软件
灵活性：快速且易于重新编程

工作方式

FDhighV使用单螺杆泵作为点胶系统的传动机构。通过一个电机将流体泵入系统，从而避免使用压缩空气。我们的URCap易于编程和设置，允许用户根据机器人移动速度控制点胶速度，随带的清洁工艺有助于防止液体堆积在胶枪尖端。

子应用
喷涂
产品分类
机器人兼容性
UR3e
UR5e
UR10e
UR16e
UR3
UR5
UR10
销售区域
  • Austria
  • Belarus
  • Belgium
  • Bulgarian
  • Croatia
  • Czech Republic
  • Denmark
  • Estonia
  • Finland
  • France
  • Georgia
  • Germany
  • Greece
  • Hong Kong
  • Hungary
  • Iceland
  • Ireland
  • Israel
  • Italy
  • Latvia
  • Lithuania
  • Luxembourg
  • Macau
  • Macau
  • Malta
  • Netherlands
  • Norway
  • Oman
  • Poland
  • Portugal
  • Qatar
  • Romania
  • Russia
  • Saudi Arabia
  • Slovakia
  • Slovenia
  • Spain
  • Sweden
  • Switzerland
  • Turkey
  • United Arab Emirates
  • United Kingdom
  • USA
  • 台湾
  • 中国大陆
  • 中国大陆

是否包含插件
是：Aim_URCap_3.2.1及以上

软件版本要求UR PolyScope 5.5或更高版本

配套使用要求
需要外部给料系统

认证与标准CE符合性声明
符合ISO / IEC 17050-1.2010的欧盟联合声明

尺寸装运尺寸：长x宽x高（350x200x120mm）1公斤
产品尺寸：长x宽x高（65x130x170mm）
有效载荷：0.8kg

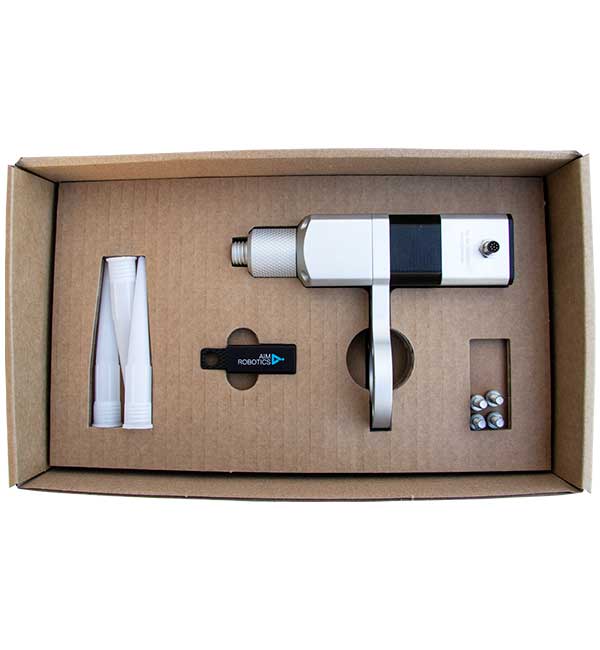

套件内容LED指示灯，NPT 1/4 进口，泵单元，带USB的URcap和用户手册，8PIN引线，3个喷嘴

许可类型一次性购买
