Aim FD400

zoom
zoom
zoom
zoom
zoom
zoom

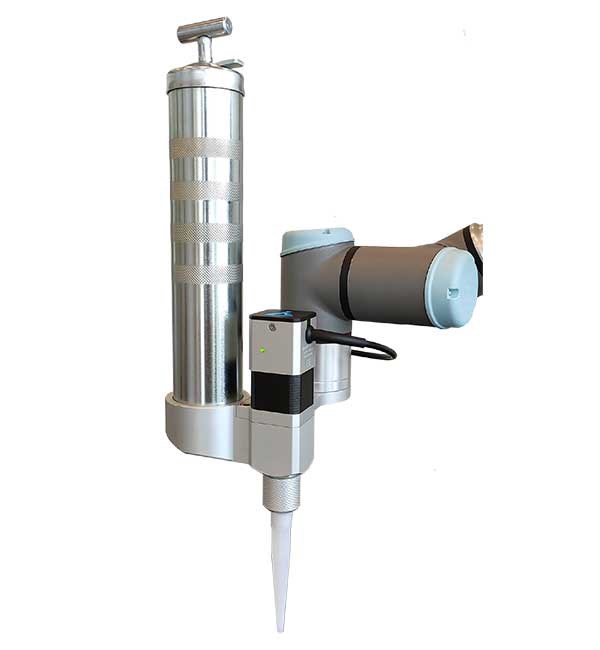

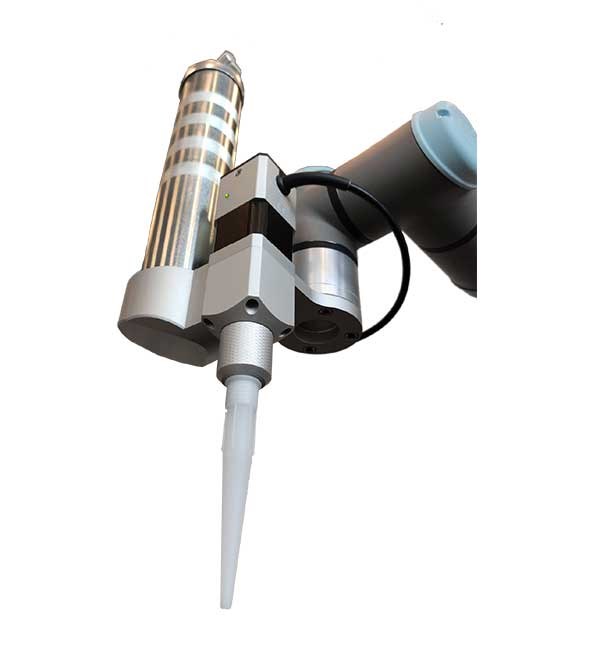

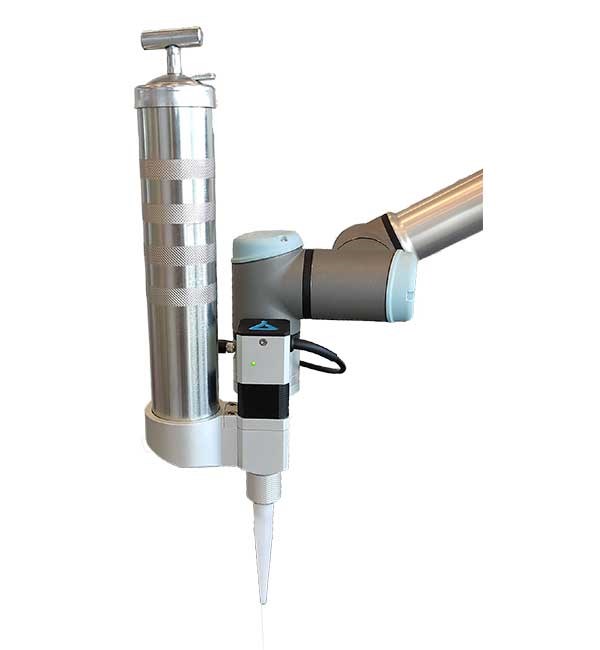

正在申请专利的纯电动胶枪，无需压缩空气，助力机器人涂胶和点胶等工艺应用；FD400是UR机器人的即插即用点胶工具/末端执行器，并且提供了高水平的过程控制软件，减少了使用压缩空气时因压力变化造成的工艺差异。可确保中等粘度的流体（例如油脂和硅脂）在机器人不同涂胶工艺下的精准输送；FD400随配与UR机器人适配的URcaps应用软件，只需通过 8PinM8连接器与机器人连接即可快速使用。在Aim URCap中，您可以控制点胶速度，如通过编程实现根据机器人的移动速度而改变点胶速度，从而确保在UR机器人各种路径上的恒定出胶量。推荐用于中等粘度的脂类流体。

查看完整描述
获取信息
网站
添加到项目 在一个或多个项目中收集自动化解决方案所需的产品。访问您的项目页面以获得完整概览。 转到我的项目
特点

无需压缩空气的纯电动方案：即插即用，准确点胶
易于安装和设置：10分钟即可启动并运行
专门设计的URcaps软件：友好的用户界面，与机器人的单点连接
灵活性：配件齐全，也可以升级使用310墨盒

工作方式

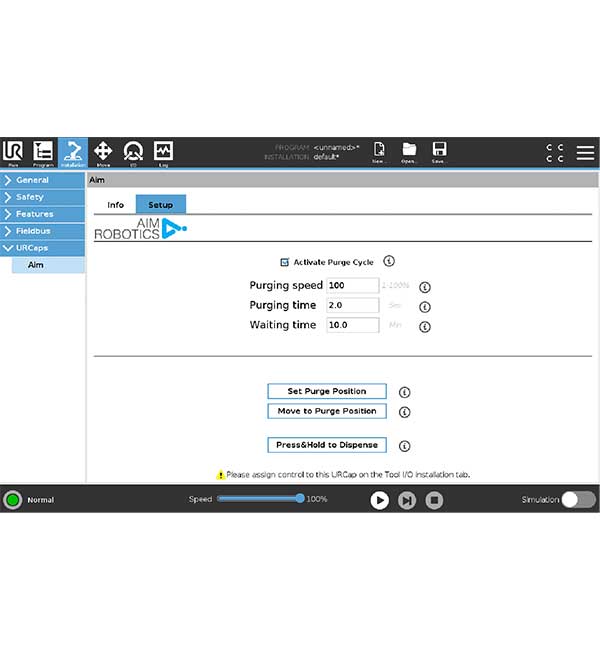

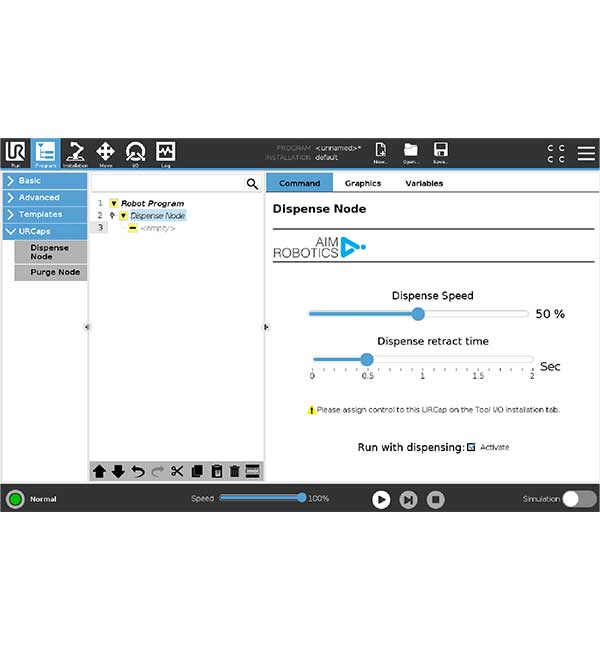

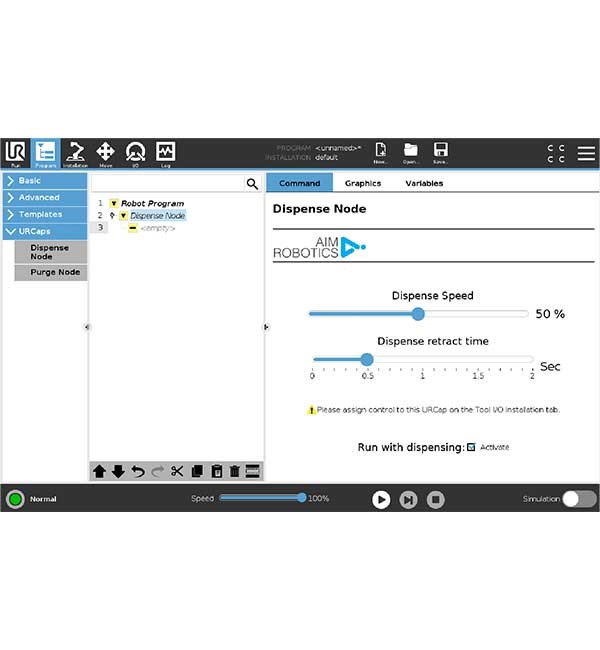

FD400采用单螺杆泵作为点胶系统的传动机构。通过一个电机将流体泵入系统，从而避免使用压缩空气。我们的URCap易于编程和设置，允许用户根据机器人移动速度控制点胶速度，随带的清洁工艺有助于防止液体堆积在胶枪尖端。

子应用
喷涂
产品分类
机器人兼容性
UR3e
UR5e
UR10e
UR16e
销售区域
  • Argentina
  • Austria
  • Belarus
  • Belgium
  • Brazil
  • Bulgarian
  • Canada
  • Chile
  • Colombia
  • Croatia
  • Czech Republic
  • Denmark
  • Estonia
  • Finland
  • France
  • Georgia
  • Germany
  • Greece
  • Hungary
  • Iceland
  • Ireland
  • Israel
  • Italy
  • Latvia
  • Lithuania
  • Luxembourg
  • Macau
  • Malta
  • Mexico
  • Netherlands
  • Norway
  • Oman
  • Peru
  • Poland
  • Portugal
  • Qatar
  • Romania
  • Russia
  • Saudi Arabia
  • Slovakia
  • Slovenia
  • Spain
  • Sweden
  • Switzerland
  • Turkey
  • United Arab Emirates
  • United Kingdom
  • USA
  • 中国大陆

是否包含插件是：Aim_URCap_3.2.1及以上

软件版本要求UR PolyScope 5.5或更高版本

配套使用要求不依赖外界配件

认证与标准
CE符合性声明
符合ISO / IEC 17050-1.2010的欧盟联合声明

尺寸装运尺寸：长x宽x高（400mmx290mmx90mm）2,5KG
产品尺寸：长x宽x高（135mmx155mmx390mm），不带喷嘴尺寸
不含墨盒的有效载荷：1.7千克

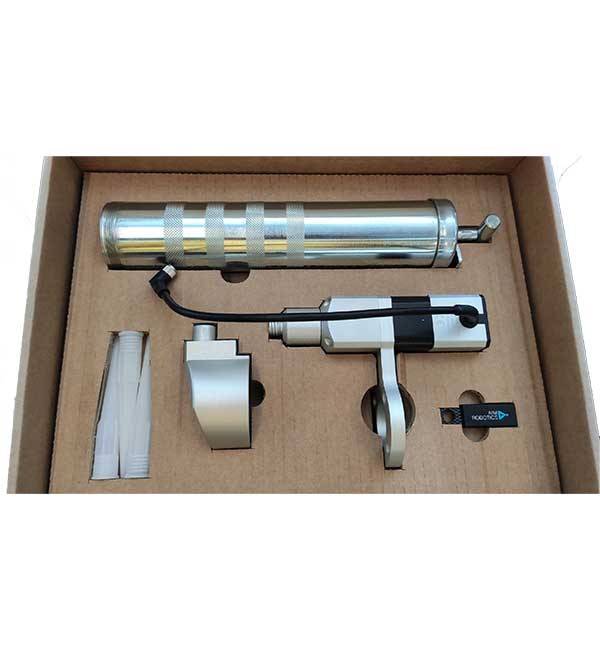

套件内容FD400点胶末端执行器，用于400毫升墨盒的barrol，带USB的URcap和用户手册，3个喷嘴，6个M6螺钉

许可类型一次性购买
